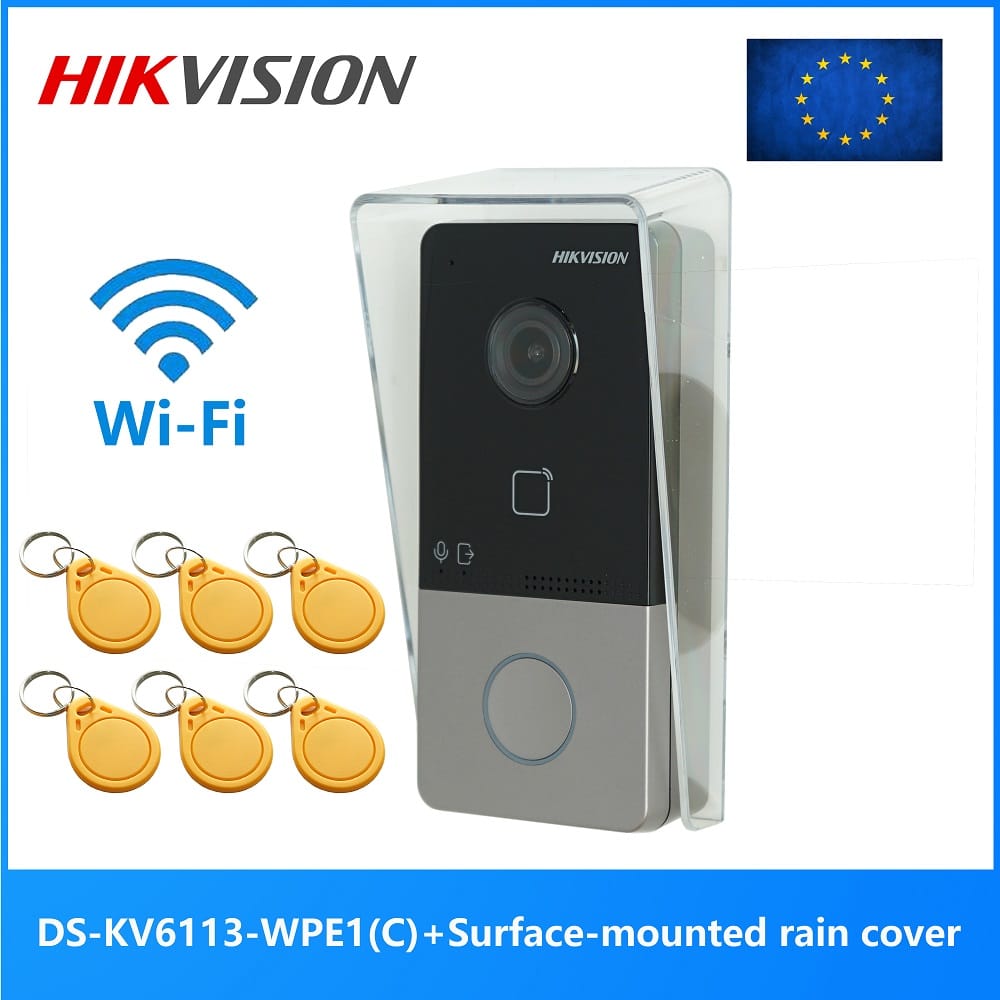

HIKVISION Multi-language DS-KV6113-WPE1(C) IP Doorbell,WiFi Doorbell , Door phone, Video Intercom, waterproof , IC card unlock
NOTE:
This link is only sell a Door station,not include monitor、PoE Switchmonitor need buy from other link.
If you need a indoor monitor, press this photo to buy:
This is (C) version Hardware, can used alone,
It can call HIK-CONNECT directly without a Indoor monitor.
Support official firmware upgrade.
Support language:
English, French, Portuguese, Spanish, Russian, German, Italian, Poland, Arabic, Türkiye, Vietnam, Hungary, Netherlands, Romania, Czech Republic, Bulgaria, Ukraine, Croatia, Serbia, Greece, Slovenia, Portugal (Brazil), Estonia, Finland, Hebrew, Lithuania, Latvia, Mongolia, Norway, Slovenia, Slovakia, Denmark, Traditional Chinese, Uzbekistan, Kazakhstan;
Scenes 1: multiple monitors
Scenes 2: use alone
Scenes 3: use alone
If you need a compatible PoE switch, press this photo to buy:
System Parameters | |
Operating System | Embedded Linux operation system |
ROM | 32 M |
RAM | 256 M |
CPU | Embedded MCU Processor |
Display Parameters | |
Screen Size | / |
Operation Method | / |
Type | / |
Resolution | / |
Video Parameters | |
Lens | 1 |
Resolution | Main stream: 1920 × 1080p, 720p |
Sub stream: 704 × 576 | |
FOV | Horizontal: 131° Vertical: 78° |
WDR | True WDR |
Supplement Light | IR supplement |
Video Compression Standard | H.264 |
Audio Parameters | |
Audio Compression | StandardG.711 U |
Audio Input | Built-in omnidirectional microphone |
Audio Output | Built-in loudspeaker |
Audio Compression Bitrate | 64 Kbps |
Audio Quality | Noise suppression and echo cancellation |
Volume Adjustment | Adjustable |
Capacity | |
User Capacity | 2000 |
Face Capacity | / |
Card Capacity | 10000 |
Network Parameters | |
Communication Protocol | TCP/IP, RTSP |
Wired Network | 10/100 Mbps self-adaptive Ethernet |
Wi-Fi Standard | Support |
Bluetooth Version | Not supported. |
3G/4G Standard | / |
Device Interfaces | |
Alarm Input | 4 |
Network Interface | 1 |
TAMPER | 1 |
Exit Button | 1 |
RS-485 | 1 |
USB | 0 |
Wiegand | 0 |
TF Card | Reserved |
Alarm Output | 0 |
Lock Control | 1 |
Door Contact Input | 1 |
Power Interface | 1 |
General | |
Button | 1 |
Installation | Surface mounting |
Indicator | 2 |
265g | |
Protective Level | IP65 |
Working Temperature | -40° C to +55° C(-40° F to 131° F) |
Working Humidity | 10% to 95% |
Dimensions | 138 mm × 65 mm × 27 mm |
Battery | / |
Application Environment | Outdoor |
Power Consumption | ＜10 W |
Support motion detection alarm to client software
Support for adding outdoor stations to Synology NAS recording and playback
,
