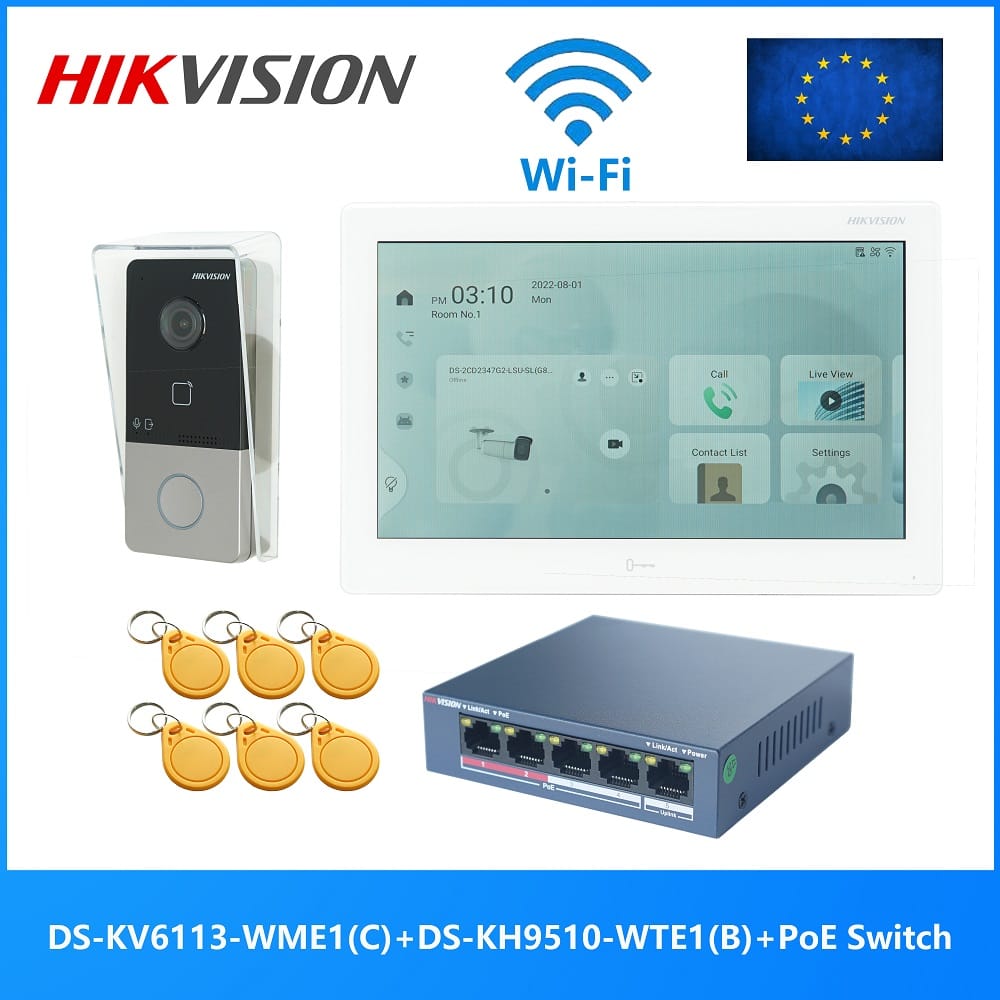

HIKVISION Multi-language 802.3af POE Video intercom KIT,include DS-KV6113-WPE1(C) & DS-KH9510-WTE1(B) & PoE Switch
Important:
If you have any questions about EU Tax, Please chat with me
Support official firmware upgrade. If you need more indoor stations, please click the product link below to order:
Support language:
English, Arbic, Russian, French, German, Italian, Polish, Dutch, Portuguese, Spanish, Hungarian, Ukrainian, Turkish, Romanian, Bulgarian, Czech, Greek, Croatian, Serbian, Norwegian, Dansk, Vietnamese, Estonian, Slovenian, Slovak, Finnish, Hebrew, Latvian,Lithuania,Portuguese (Brazil),Svenska,Монгол хэл,Traditional Chinese, Uzbek, Kazakhstan
Scenes : use network cable connection
Scenes 2 : use WIFI connection
Doorbell data sheet
System Parameters | |
Operating System | Embedded Linux operation system |
ROM | 32 M |
RAM | 256 M |
CPU | Embedded MCU Processor |
Display Parameters | |
Screen Size | / |
Operation Method | / |
Type | / |
Resolution | / |
Video Parameters | |
Lens | 1 |
Resolution | Main stream: 1920 × 1080p, 720p |
Sub stream: 704 × 576 | |
FOV | Horizontal: 131° Vertical: 78° |
WDR | True WDR |
Supplement Light | IR supplement |
Video Compression Standard | H.264 |
Audio Parameters | |
Audio Compression | StandardG.711 U |
Audio Input | Built-in omnidirectional microphone |
Audio Output | Built-in loudspeaker |
Audio Compression Bitrate | 64 Kbps |
Audio Quality | Noise suppression and echo cancellation |
Volume Adjustment | Adjustable |
Capacity | |
User Capacity | 2000 |
Face Capacity | / |
Card Capacity | 10000 |
Network Parameters | |
Communication Protocol | TCP/IP, RTSP |
Wired Network | 10/100 Mbps self-adaptive Ethernet |
Wi-Fi Standard | Support |
Bluetooth Version | Not supported. |
3G/4G Standard | / |
Device Interfaces | |
Alarm Input | 4 |
Network Interface | 1 |
TAMPER | 1 |
Exit Button | 1 |
RS-485 | 1 |
USB | 0 |
Wiegand | 0 |
TF Card | Reserved |
Alarm Output | 0 |
Lock Control | 1 |
Door Contact Input | 1 |
Power Interface | 1 |
General | |
Button | 1 |
Installation | Surface mounting |
Indicator | 2 |
265g | |
Protective Level | IP65 |
Working Temperature | -40° C to +55° C(-40° F to 131° F) |
Working Humidity | 10% to 95% |
Dimensions | 138 mm × 65 mm × 27 mm |
Battery | / |
Application Environment | Outdoor |
Power Consumption | <10 W |
Indoor Monitor data sheet
System Parameters | |
Operating System | Embedded Android operation system |
ROM | 8 GB Emmc |
RAM | 2 GB |
CPU | Embedded processor |
Display Parameters | |
Screen Size | 10.1-inch |
Operation Method | Capacitive touch screen |
Type | Colorful IPS |
Resolution | 1024 × 600 |
Video Parameters | |
Lens | / |
Resolution | / |
FOV | / |
WDR | / |
Video Compression Standard | / |
Focal Length | / |
Audio Parameters | |
Audio Compression Standard | G.711 U, G.711 A |
Audio Input | Built-in omnidirectional microphone |
Audio Output | Built-in loudspeaker |
Audio Compression Bitrate | 64 Kbps |
Audio Quality | Noise suppression and echo cancellation |
Volume Adjustment | Adjustable |
Capacity | |
Event Capacity | 200 |
Notice Capacity | 16 |
Linked Indoor Extensions Capacity | 5 |
Network Parameters | |
Communication Protocol | TCP/IP, SIP, RTSP |
Wired Network | Support |
Wi-Fi Standard | Wi-Fi 802.11 b/g/n |
Bluetooth Version | / |
3G/4G Standard | / |
Zigbee | / |
Device Interfaces | |
Alarm Input | 8 |
Network Interface | 1 RJ-45 10/100 Mbps self-adaptive |
TAMPER | / |
RS-485 | 1 |
TF Card | Reserverd |
Alarm Output | 1 relay output, 1 alarm output |
Power Interface | 1 |
General | |
Button | / |
Installation | Surface mounting |
Indicator | / |
Weight | Without package: 875 g |
With package: 1060 g | |
Protective Level | / |
Working Temperature | -10 °C to 50 °C (14 °F to 122 °F) |
Working Humidity | 10% to 90% |
Dimensions | 254 mm × 166 mm × 26.65 mm (10.0" × 6.54" × 1.05") |
Battery | / |
Power Supply | IEEE802.3af, standard PoE |
12 VDC, 1 A | |
Application Environment | Indoor |
Power Consumption | ≤ 8 W |
Support motion detection alarm to client software
Support for adding outdoor stations to Synology NAS recording and playback
,
