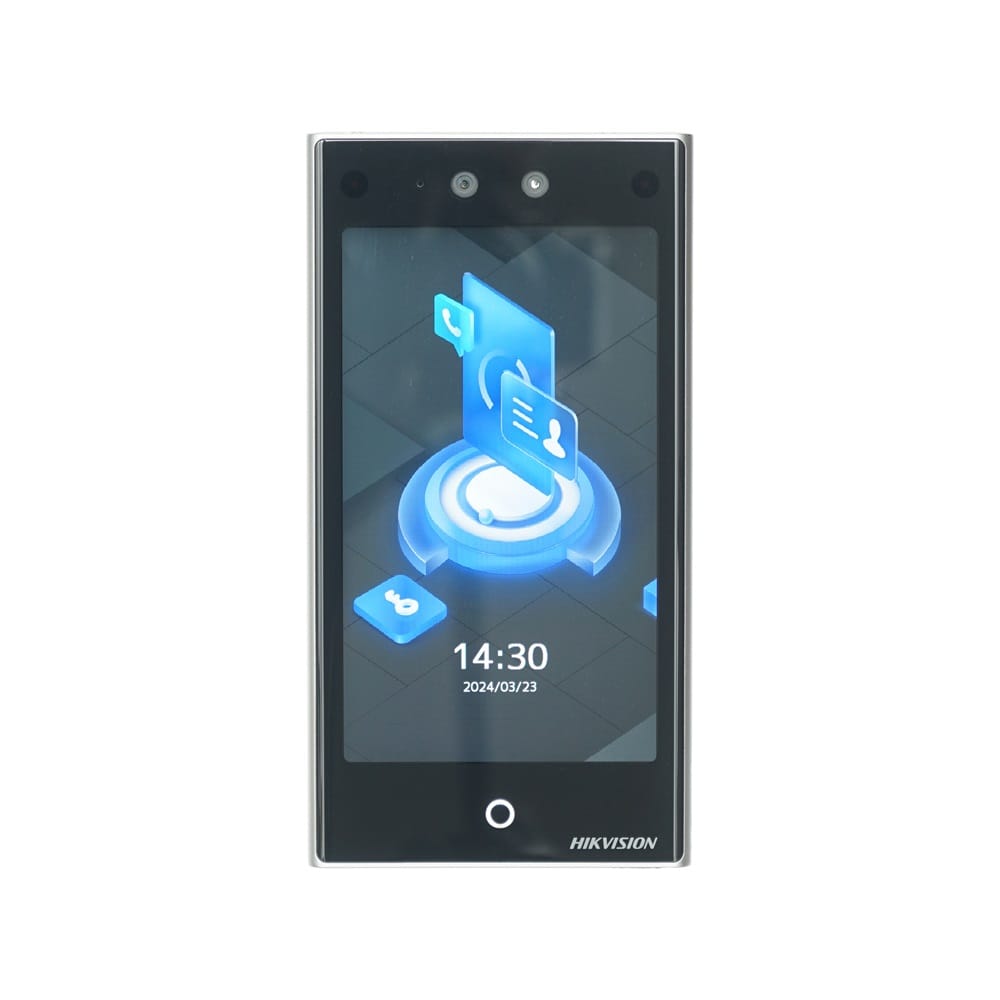

Hikvision DS-K1T673DWX Facial Recognition IP doorbell doorphone video Intercom Terminal calling to Indoor monitor
Support language:
English, French,Spanish (South America), Portuguese (Brazil),Russian,Arabic, Thai, Indonesian, Vietnamese, Japanese, Korean,Türkçel;
Pro Face Access Terminal
- 7-inch LCD touch screen,2 Mega pixel wide-angle lens
- Recognition distance: 0.3 to 3 m
- Face recognition duration ＜ 0.2 s/User
- Face recognition accuracy rate ≥ 99%
- Built-in M1 card, Felica card, and DESfire card reading module (Presents card on the screen to authenticate)
- Face mask detection
- 10,000 face capacity, 10,000 fingerprint capacity (With fingerprint module), 50,000 card capacity, and 150,000 event capacity
- Supports ISAPI, ISUP 5.0, TCP/IP (IPv4 and IPv6)
- Supports single person and multiple people (Up to 5 people) recognition
Display | |
Screen Size | 7 inch |
Operation Method | Capacitive touch screen |
Type | IPS |
Video | |
Lens | 2 |
Resolution | 2 MP |
FOV | HFOV = 75.5°; VFOV = 41.5°; DFOV = 87° |
Audio | |
Audio Quality | Built-in omnidirectional microphone |
Network | |
Wired Network | Support |
Wi-Fi | Support, 2.4 G, 802.11b/g/n |
Interface | |
Network Interface | 1 RJ-45, 10/100/1000 M self-adaptive |
Lock Control | 1 |
Exit Button | 1 |
Door Contact Input | 1 |
Alarm Input | 2 |
Alarm Output | 1 |
TAMPER | 1 |
RS-485 | 1 RS-485 (Half duplex, HIKVISION) |
Wiegand | 1 Wiegand(Hik 26bit,Hik 34bit) |
USB | 1 (For Module) |
Audio Output Interface | 1 (3.5 mm) |
Authentication | |
Card Type | M1 card;Felica card;DESfire card |
General | |
Power Supply | 12 VDC to 24 VDC, 2 A |
Working Temperature | -30 °C to 60 °C (-22 °F to 140 °F) |
Working Humidity | 0 to 90% (no condensing) |
Dimensions | 110.5mm×209.2mm×24mm (4.35" × 8.24" × 0.94") |
Weight | |
Gross Weight： | 1.06 kg (2.34 lb) |
Net Weight： | 0.57 kg (1.26 lb) |
Function | |
Face Anti-Spoofing | Support |
,
