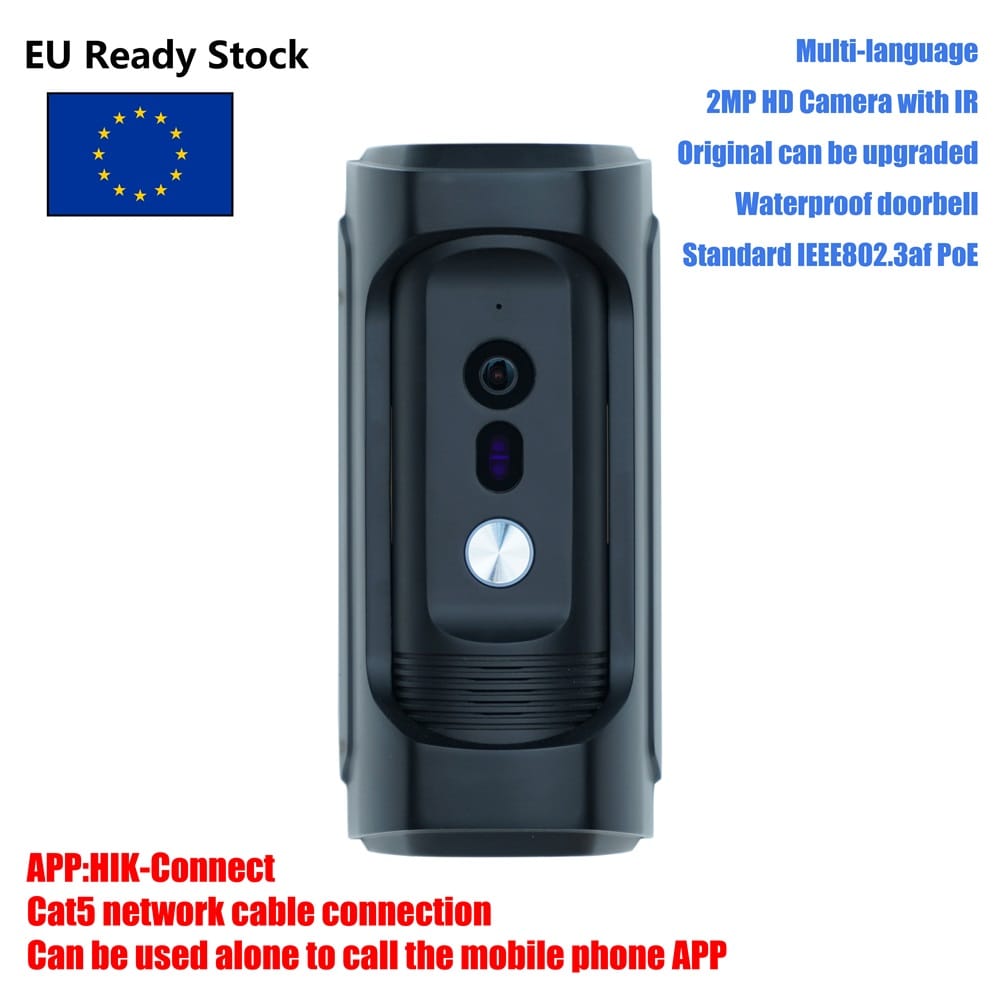

Hik Motion detection Doorbell Proof Vandal-Resistant DS-KB8113-IME1(B) IP Video Intercom Door Station support Synology NAS
Включилась, работает и с монитором, и с телефонами через Hik-Connect. К видеонаблюдению привязал как "rtsp://login:password@192.168.0.XXX:554/live/main", дополнительный поток тоже работает. Отличная вещь!
Note: This link only includes outdoor doorbell, not includes indoor display screen and PoE switch

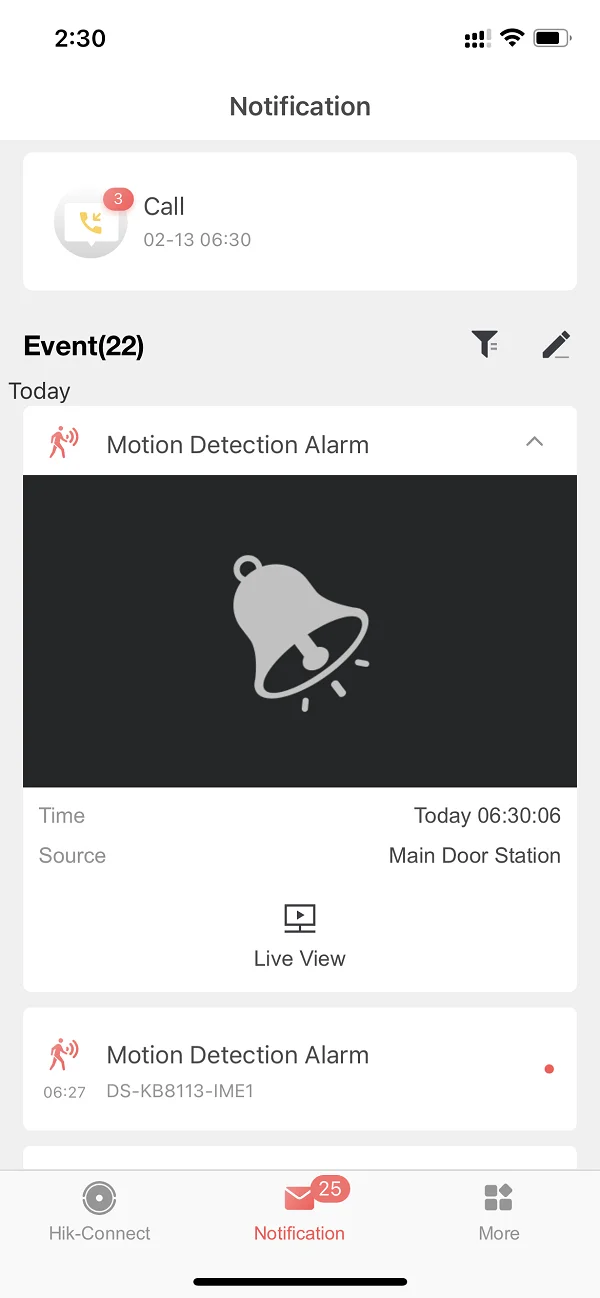

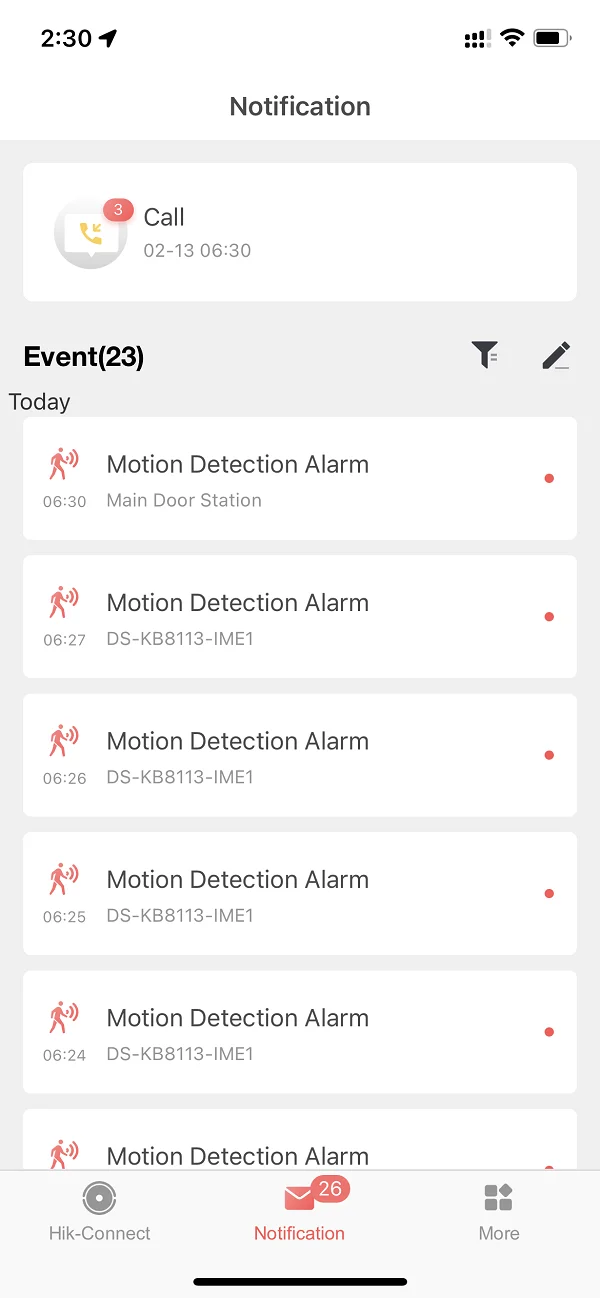

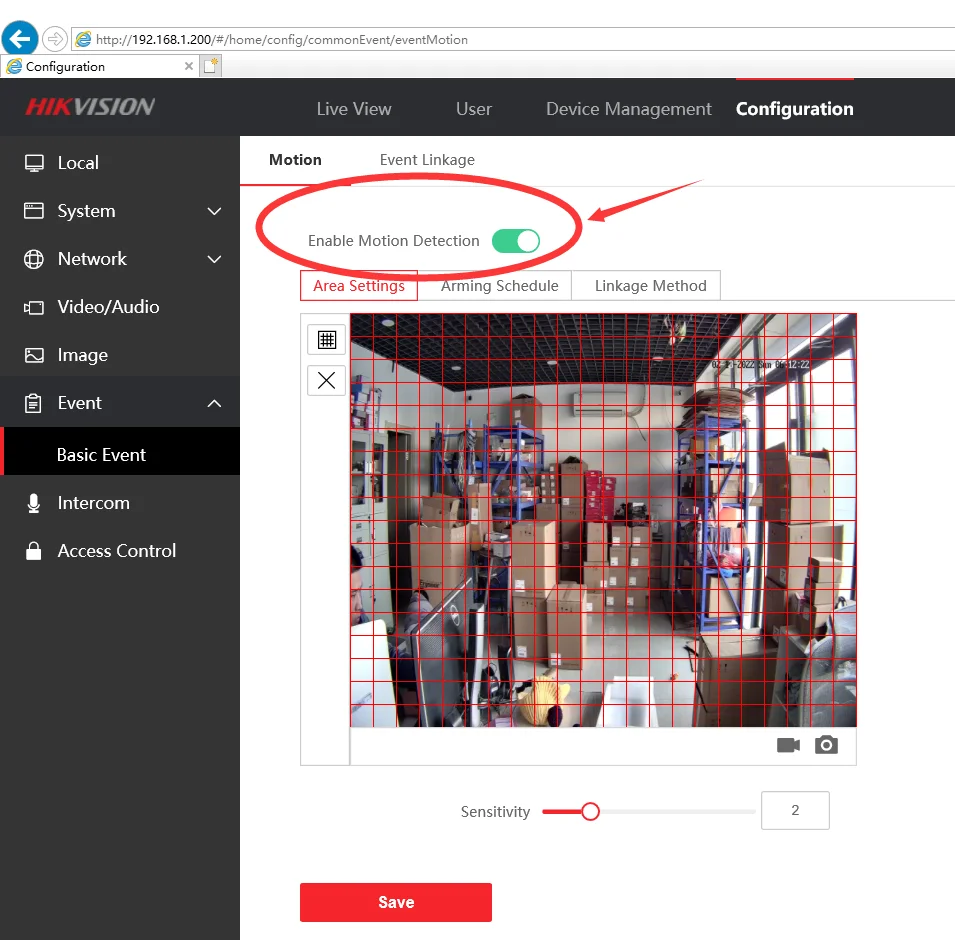

Motion detection need upgrade the latest firmware then can used.
Original International Version Support official firmware upgrade.
If you need a indoor monitor, press this photo to buy:
Original International Version Support official firmware upgrade.
Support Language:
English, French, Portuguese, Spanish, Russian, German, Italian, Poland, Arabic, Türkiye, Vietnam, Hungary, Netherlands, Romania, Czech Republic, Bulgaria, Ukraine, Croatia, Serbia, Greece, Slovenia, Portugal (Brazil), Estonia, Finland, Hebrew, Lithuania, Latvia, Mongolia, Norway, Slovenia, Slovakia, Denmark, Traditional Chinese, Uzbekistan, Kazakhstan;
There are two ways of using DS-KB8113-IME1,
1. Door station mode, cooperate with DS-KH6320-WTE1, and call Indoor monitor and HIK-CONNECT. at the same time.

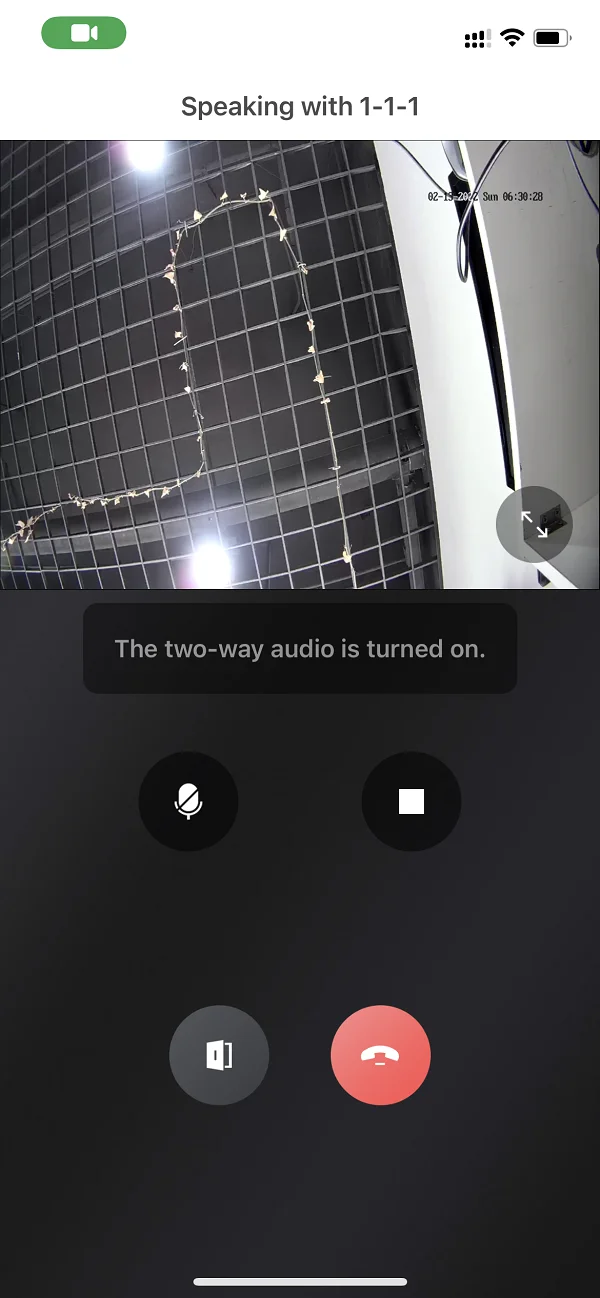

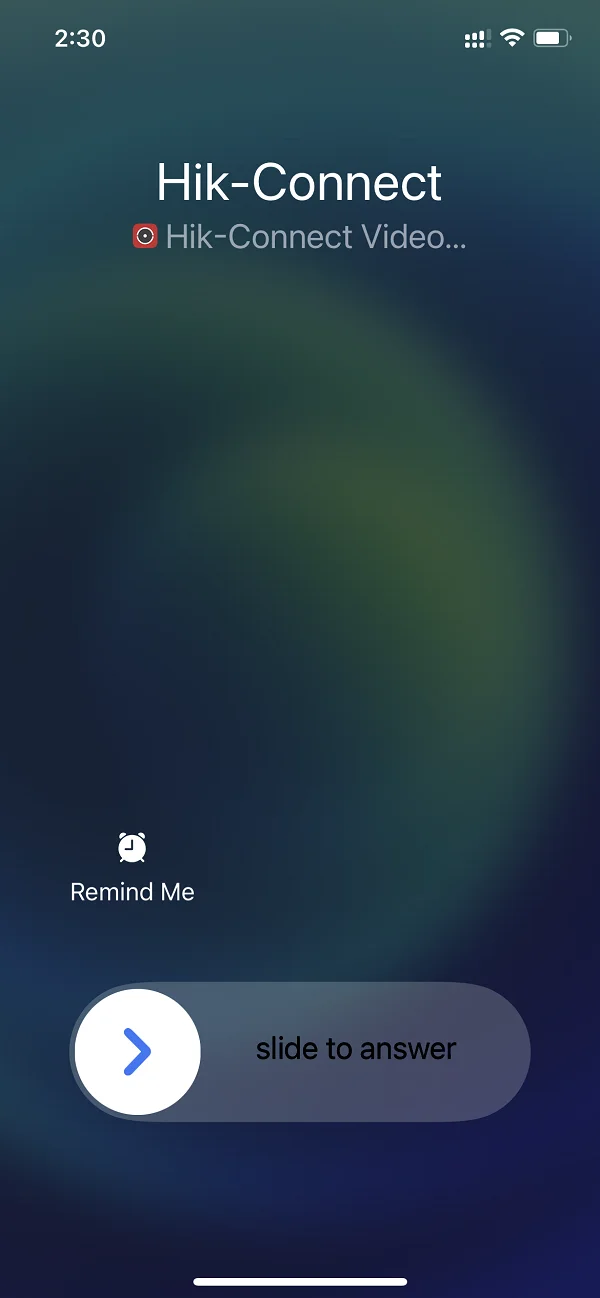

2. Door phone mode, used alone, call to mobile APP:HIK-CONNECT.

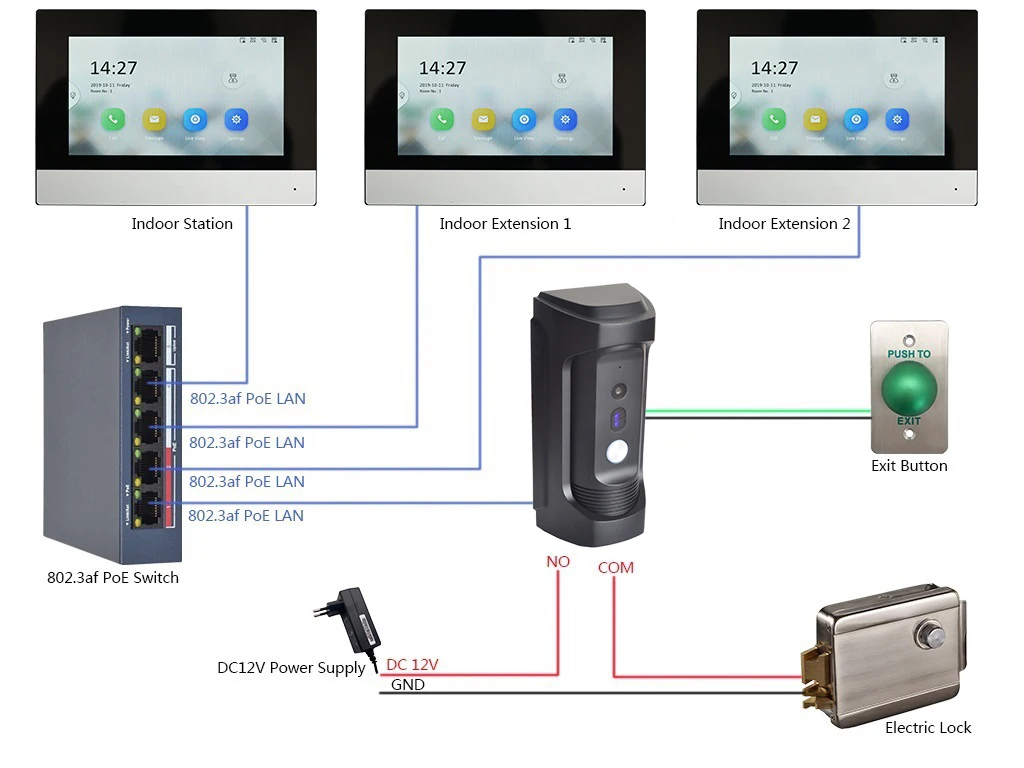

Scenes 1: Work with multiple monitors

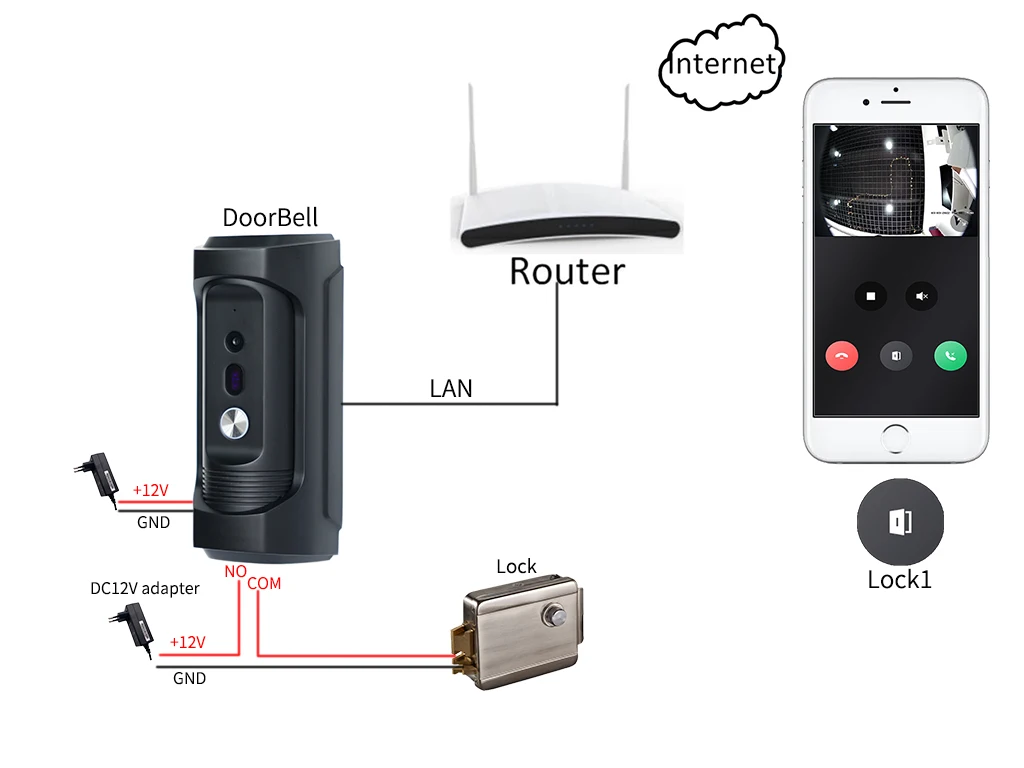

Scenes 2 : use alone

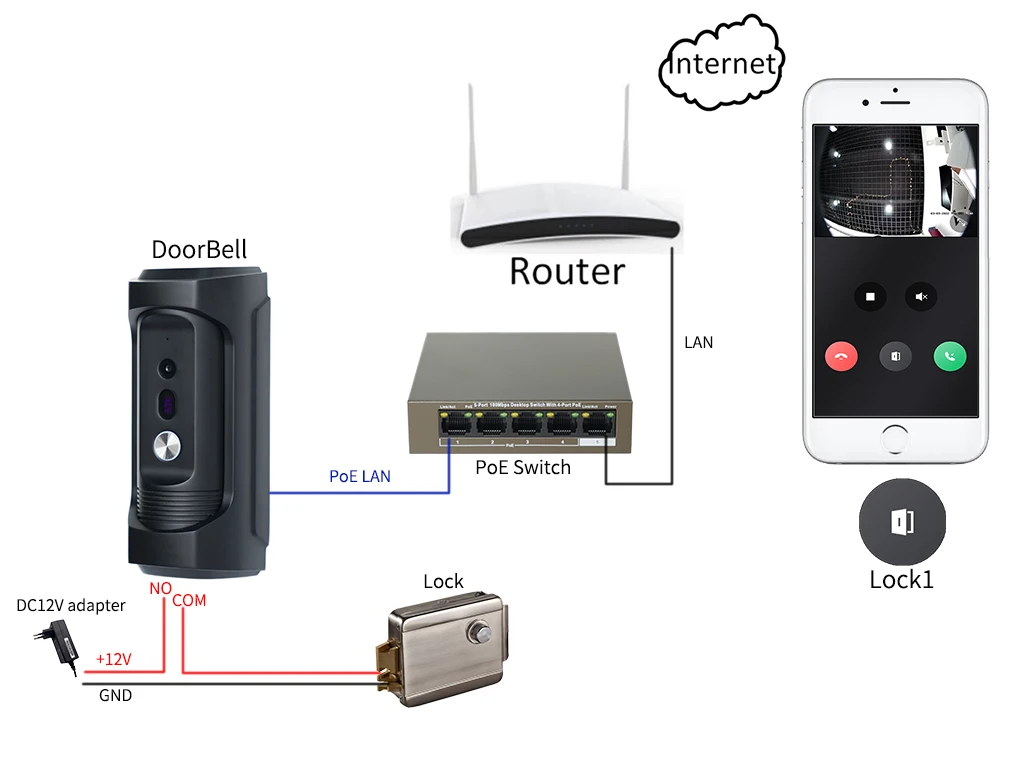

Scenes 3 : use alone

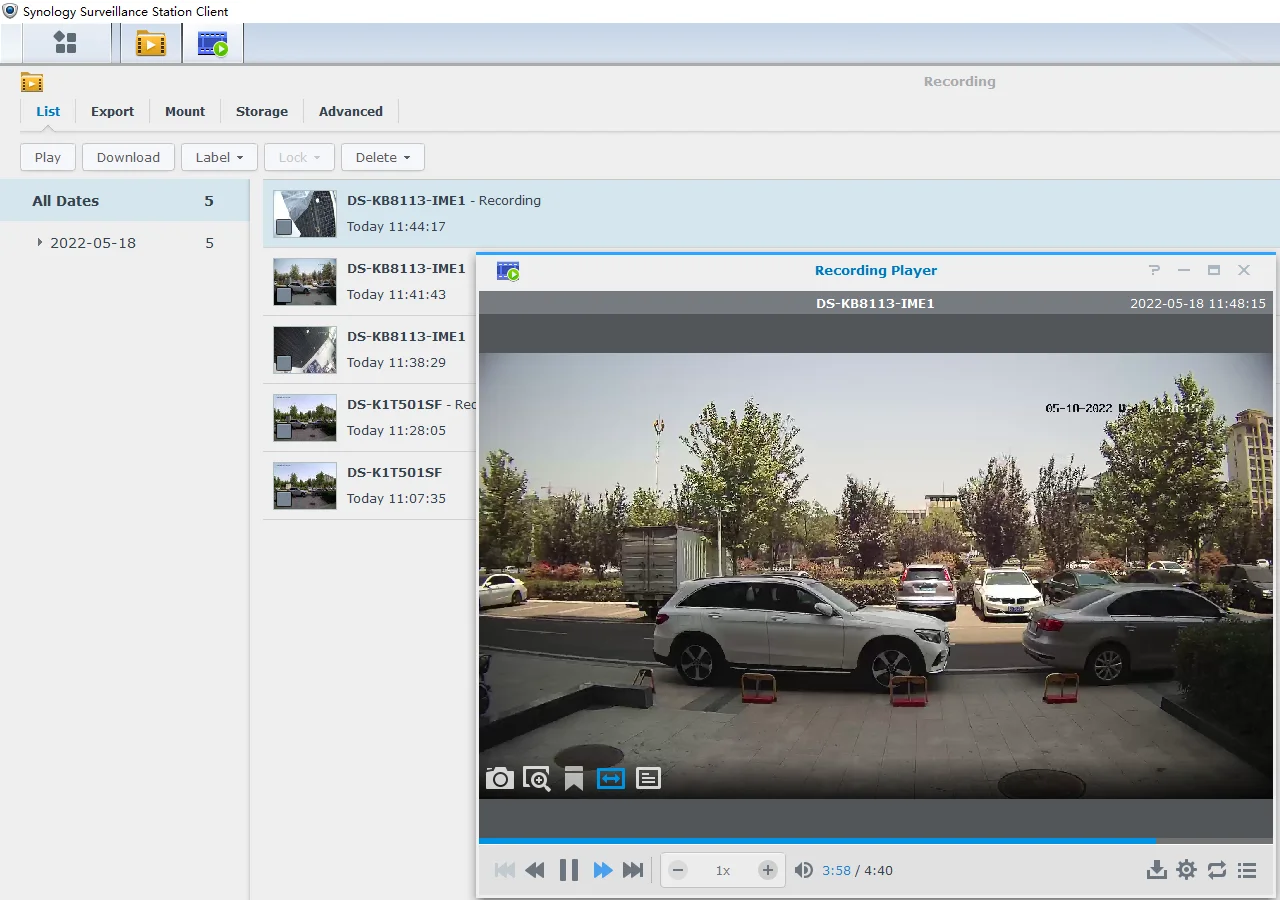

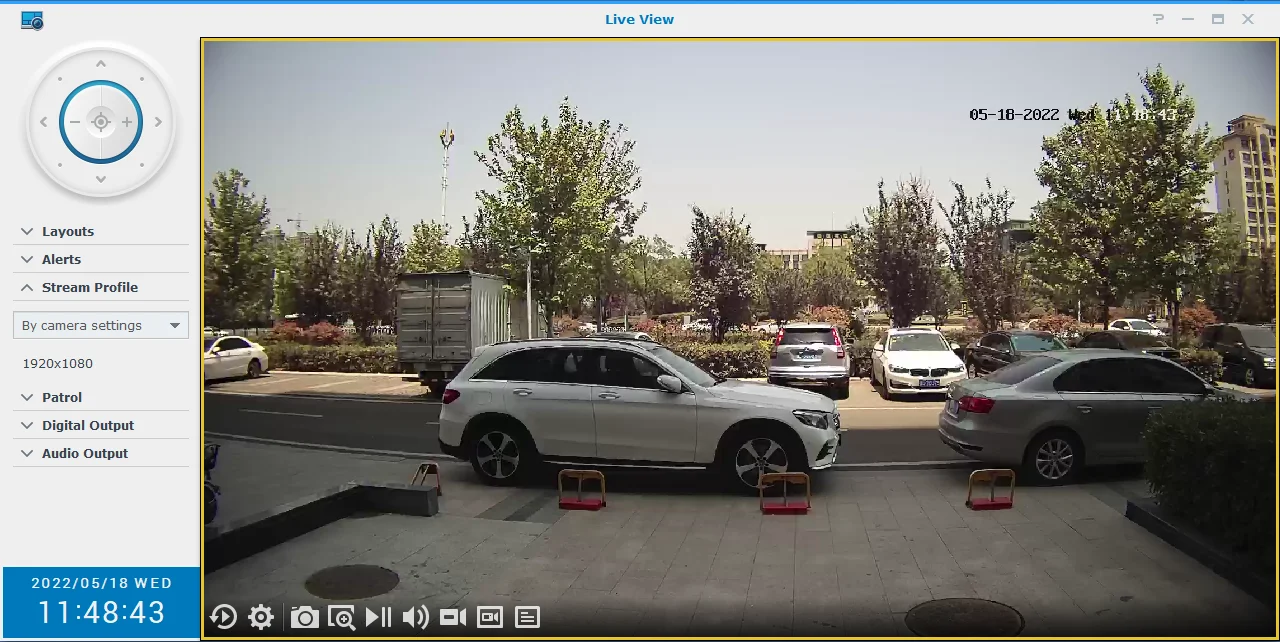

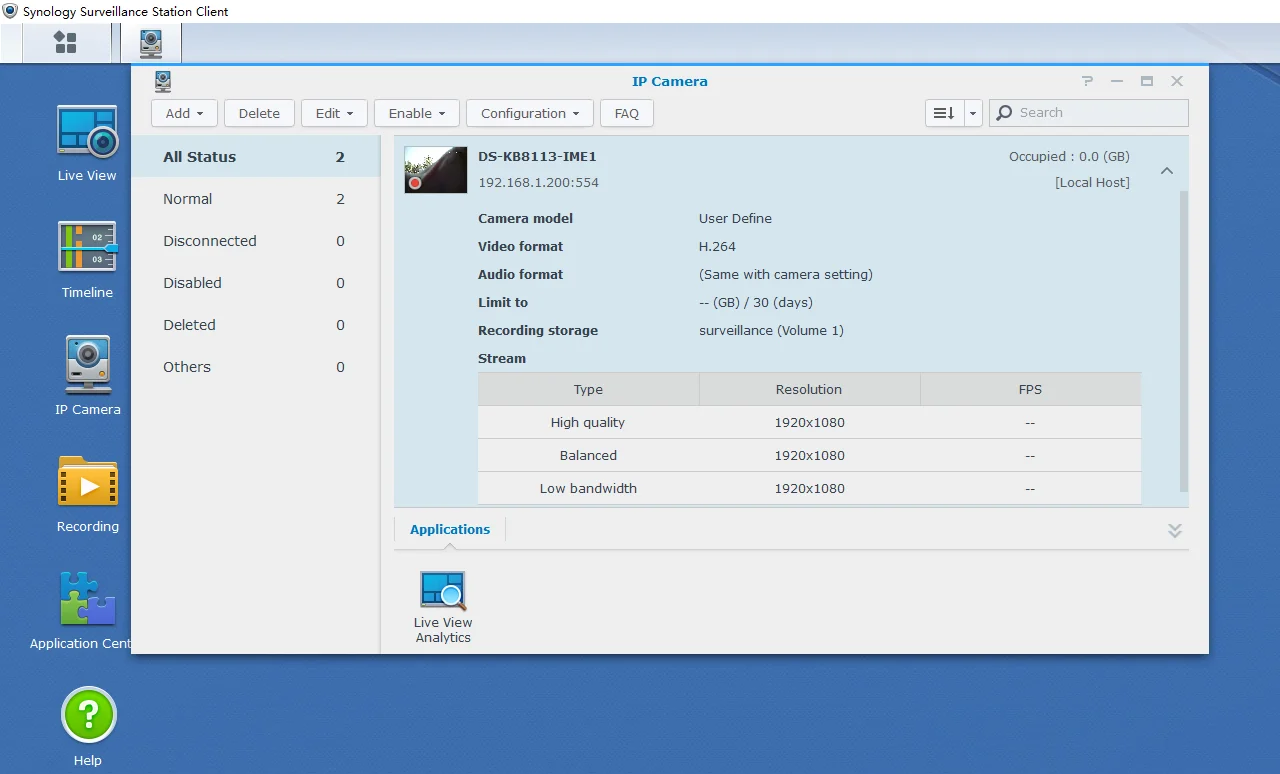

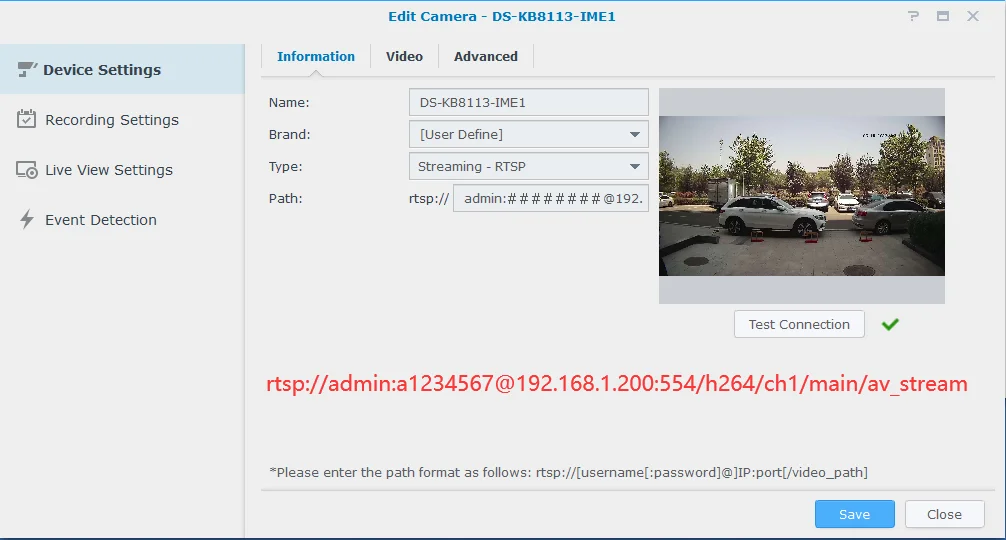

Support for adding outdoor stations to Synology NAS recording and playback
System Parameters | |
Operating System | Embedded Linux operation system |
ROM | 32 M |
RAM | 256 M |
CPU | Embedded MCU Processor |
Display Parameters | |
Screen Size | / |
Operation Method | / |
Type | / |
Resolution | / |
Video Parameters | |
Lens | 1 |

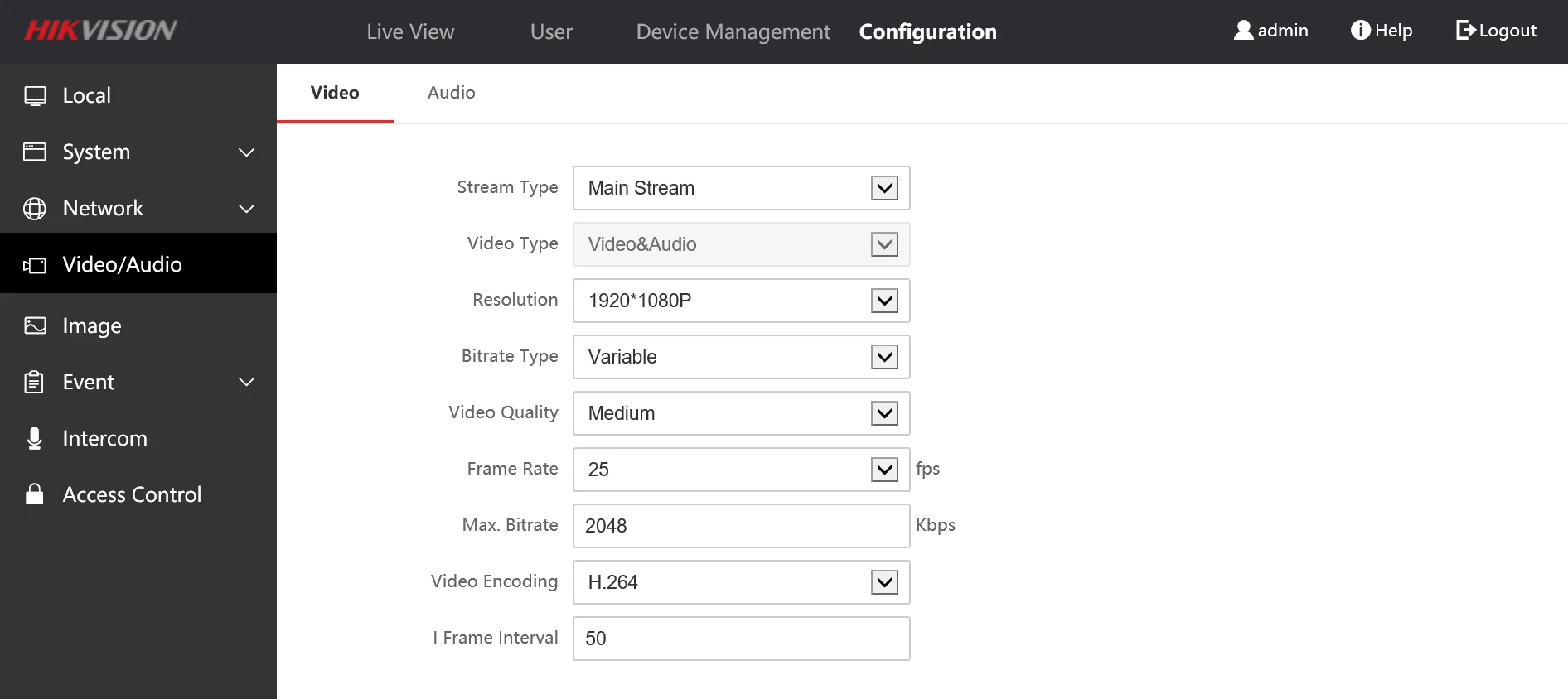

Resolution | Main stream : 1920 × 1080 |
Sub stream : 640 × 480 | |
FOV | Horizontal:95° |
Vertical:54° | |

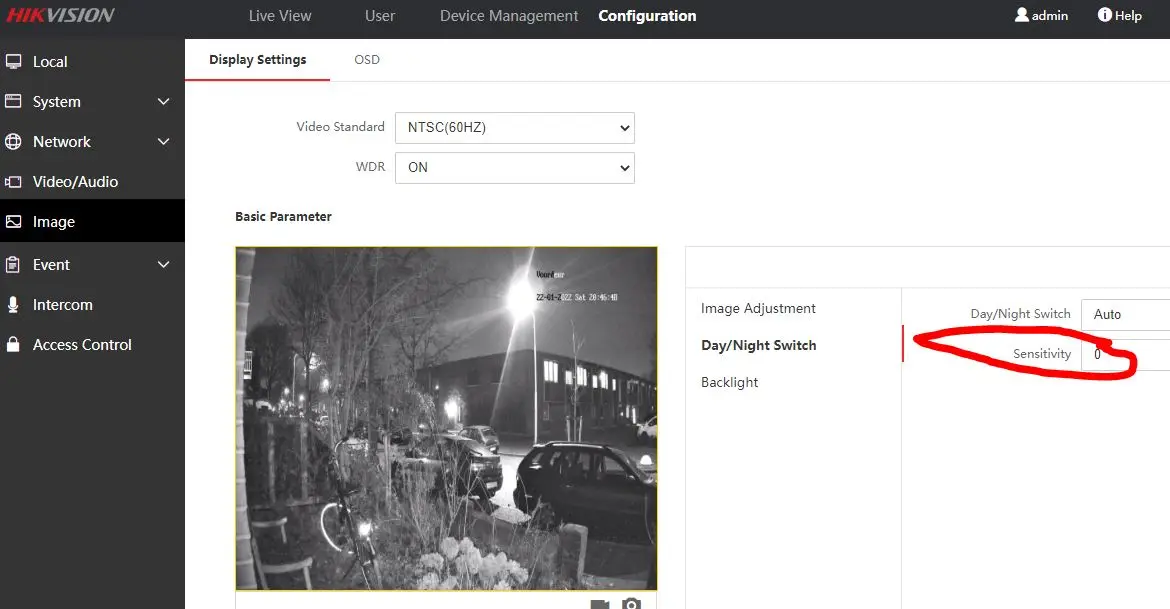

WDR | Support |
Supplement Light | IR supplement |
Video Compression Standard | H.264 |
Audio Parameters | |
Audio Compression Standard | G.711 U，G.711 A |
Audio Input | Built-in omnidirectional microphone |
Audio Output | Built-in loudspeaker (More than 80 dB within 30 cm) |
Audio Compression | Bitrate64 Kbps |
Audio Quality | Noise suppression and echo cancellation |
Volume Adjustment | Adjustable |
Capacity | |
Face Capacity | / |
Card Capacity | / |
Linked Indoor Station Capacity | 1 |
Sub Door Station Capacity | 16 |
Network Parameters | |
Network Protocol | TCP/IP, RSTP, SIP |
Wired Network | 10/100 Mbps self-adaptive Ethernet |
Wi-Fi Standard | / |
Bluetooth Version | / |
3G/4G Standard | / |
Device Interfaces | |
Alarm Input | 1 |
Debugging Port | 1 |
Network Interface | 1 |

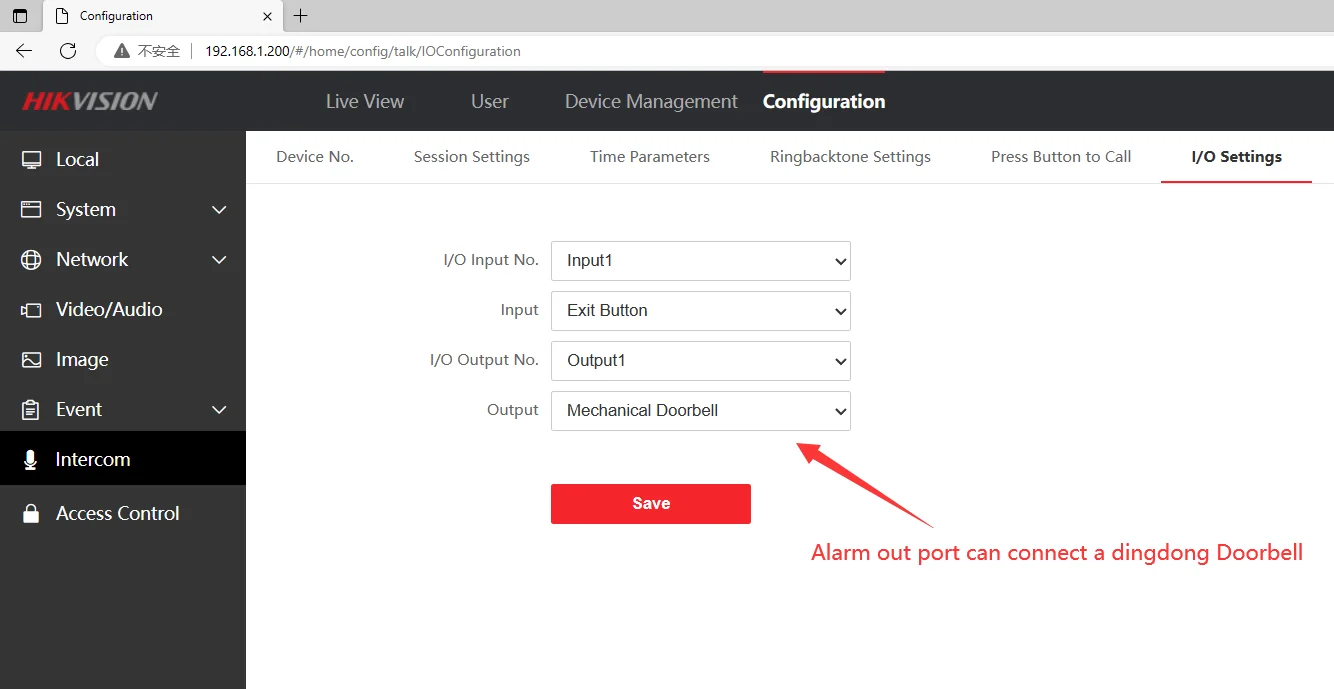

Lock Control | 1 (1 relay, max to 30 VDC, 2 A) |
Power Interface | 1 |
General | |
Button | 1 |
Power Supply | IEEE802.3af, standard PoE or 12 VDC |
Installation | Surface mounting |
Power Consumption | ＜10 W |
Working Temperature | -30° C to +50° C(-22° F to 122° F) |
Working Humidity | 10% to 90% |
Protective Level | IP65, IK09 |

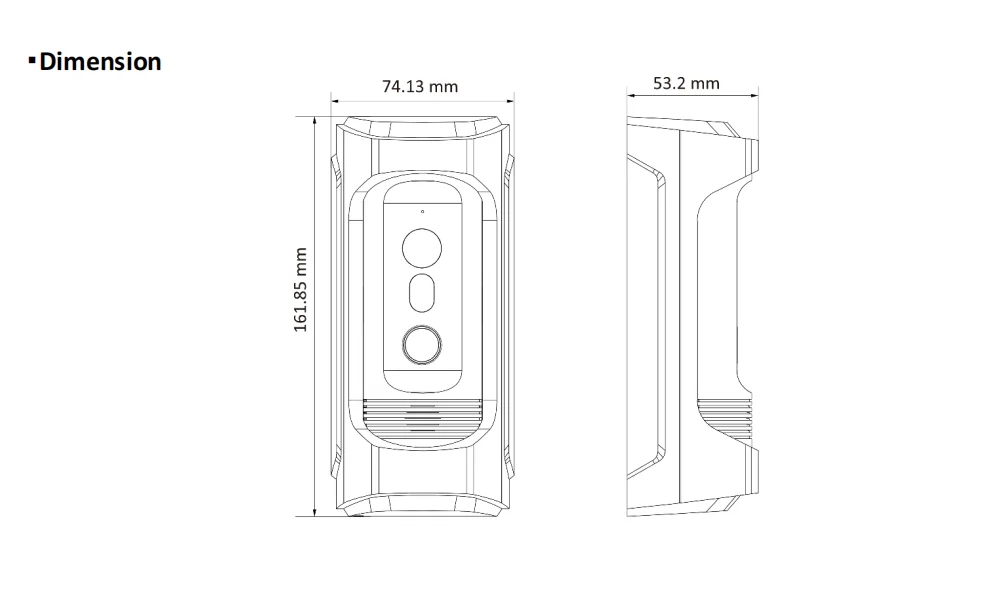

Dimensions (L X W X H) | 161.85 mm × 74.13 mm × 53.2 mm(6.37" × 2.92" × 2.09") |
Battery | / |
Application Environment | Outdoor and Indoor |
,
