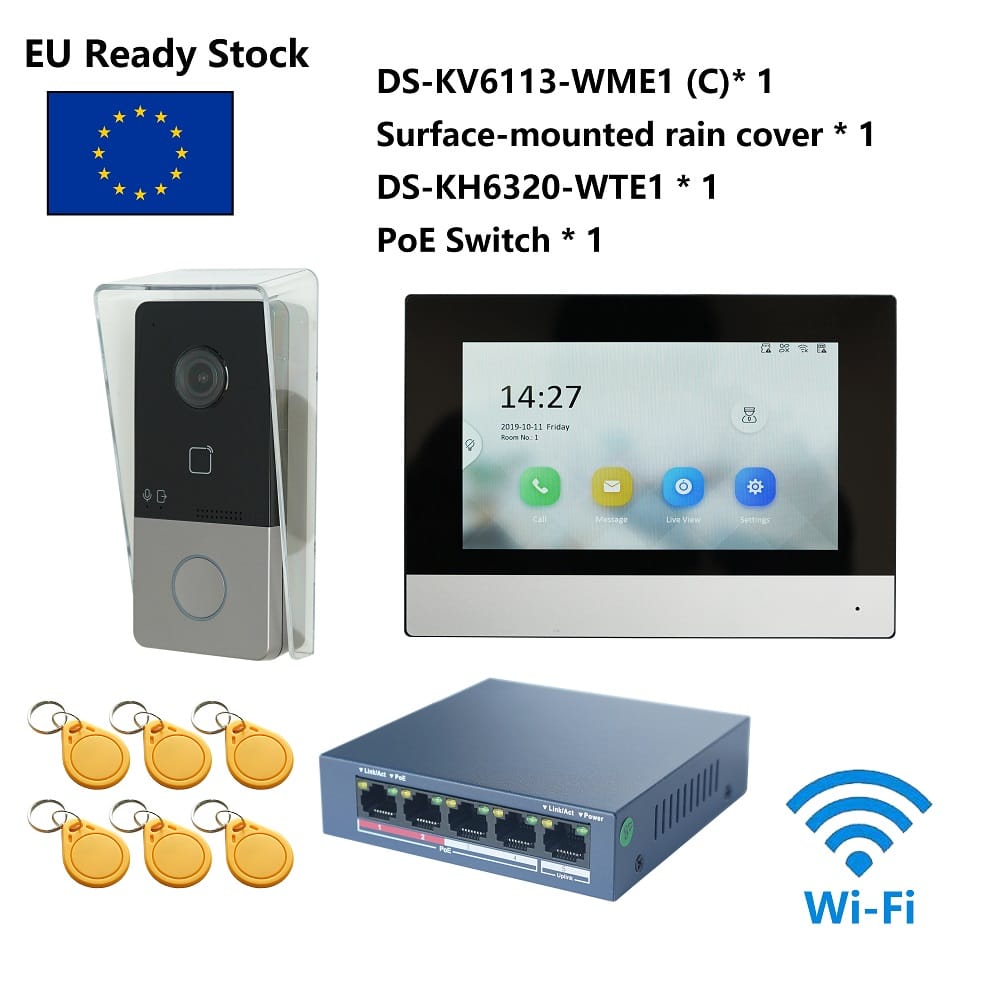

HIK DS-KIS603-P(C) Multi-language 802.3af POE Video intercom KIT,include DS-KV6113-WPE1(C) & DS-KH6320-WTE1 & PoE Switch
Important:
If you have any questions about EU Tax, Please chat with me
Support official firmware upgrade. If you need more indoor stations, please click the product link below to order:
Support language:
English, Arbic, Russian, French, German, Italian, Polish, Dutch, Portuguese, Spanish, Hungarian, Ukrainian, Turkish, Romanian, Bulgarian, Czech, Greek, Croatian, Serbian, Norwegian, Dansk, Vietnamese, Estonian, Slovenian, Slovak, Finnish, Hebrew, Latvian,Lithuania,Portuguese (Brazil),Svenska,Монгол хэл,Traditional Chinese, Uzbek, Kazakhstan
Scenes 1: use network cable connection
Scenes 2: use network cable connection
Scenes 3 : use WIFI connection
Doorbell parameters
System Parameters | |
Operating System | Embedded Linux operation system |
ROM | 32 M |
RAM | 256 M |
CPU | Embedded MCU Processor |
Display Parameters | |
Screen Size | / |
Operation Method | / |
Type | / |
Resolution | / |
Video Parameters | |
Lens | 1 |
Resolution | Main stream: 1920 × 1080p, 720p |
Sub stream: 704 × 576 | |
FOV | Horizontal: 131° Vertical: 78° |
WDR | True WDR |
Supplement Light | IR supplement |
Video Compression Standard | H.264 |
Audio Parameters | |
Audio Compression | StandardG.711 U |
Audio Input | Built-in omnidirectional microphone |
Audio Output | Built-in loudspeaker |
Audio Compression Bitrate | 64 Kbps |
Audio Quality | Noise suppression and echo cancellation |
Volume Adjustment | Adjustable |
Capacity | |
User Capacity | 2000 |
Face Capacity | / |
Card Capacity | 10000 |
Network Parameters | |
Communication Protocol | TCP/IP, RTSP |
Wired Network | 10/100 Mbps self-adaptive Ethernet |
Wi-Fi Standard | Support |
Bluetooth Version | Not supported. |
3G/4G Standard | / |
Device Interfaces | |
Alarm Input | 4 |
Network Interface | 1 |
TAMPER | 1 |
Exit Button | 1 |
RS-485 | 1 |
USB | 0 |
Wiegand | 0 |
TF Card | Reserved |
Alarm Output | 0 |
Lock Control | 1 |
Door Contact Input | 1 |
Power Interface | 1 |
General | |
Button | 1 |
Installation | Surface mounting |
Indicator | 2 |
265g | |
Protective Level | IP65 |
Working Temperature | -40° C to +55° C(-40° F to 131° F) |
Working Humidity | 10% to 95% |
Dimensions | 138 mm × 65 mm × 27 mm |
Battery | / |
Application Environment | Outdoor |
Power Consumption | ＜10 W |
Indoor Monitor parameters
System parameters | |
Memory | 128 MB |
Flash | 32 MB |
Operation system | Embedded Linux operation system |
Display parameters | |
Display screen | 7-inch colorful TFT screen |
Display resolution | 1024×600 |
Operation method | Capacitive touch screen |
Audio parameters | |
Audio input | Built-in omnidirectional microphone |
Audio output | Built-in loudspeaker |
Audio compression standard | G.711 U |
Audio compression rate | 64 Kbps |
Audio quality | Noise suppression and echo cancellation |
Network parameters | |
Wired network | 10/100 Mbps self-adaptive |
Wireless | Wi-Fi 802.11 b/g/n |
network | |
Network protocol | TCP/IP, SIP, RTSP |
Network interface | 1 RJ-45 10/100 Mbps self-adaptive |
Alarm input | 8-ch alarm inputs |
Relay output | 2 |
TF card | Max to 32 G, SD 2.0 or lower version |
RS485 | 1 |
General | |
Power supply | IEEE802.3af, standard PoE 12 VDC/1 A |
Power consumption | ≤ 6 W |
Working temperature | -10 °C to 55 °C (14 °F to 131 °F) |
Working humidity | 10% to 90% |
Dimensions | 200 mm × 140 mm × 15.1 mm |
(7.9" ×5.5" × 0.6") | |
Weight | 683 g (with packaging) 355 g (without packaging) |
Support motion detection alarm to client software
Support for adding outdoor stations to Synology NAS recording and playback
,
