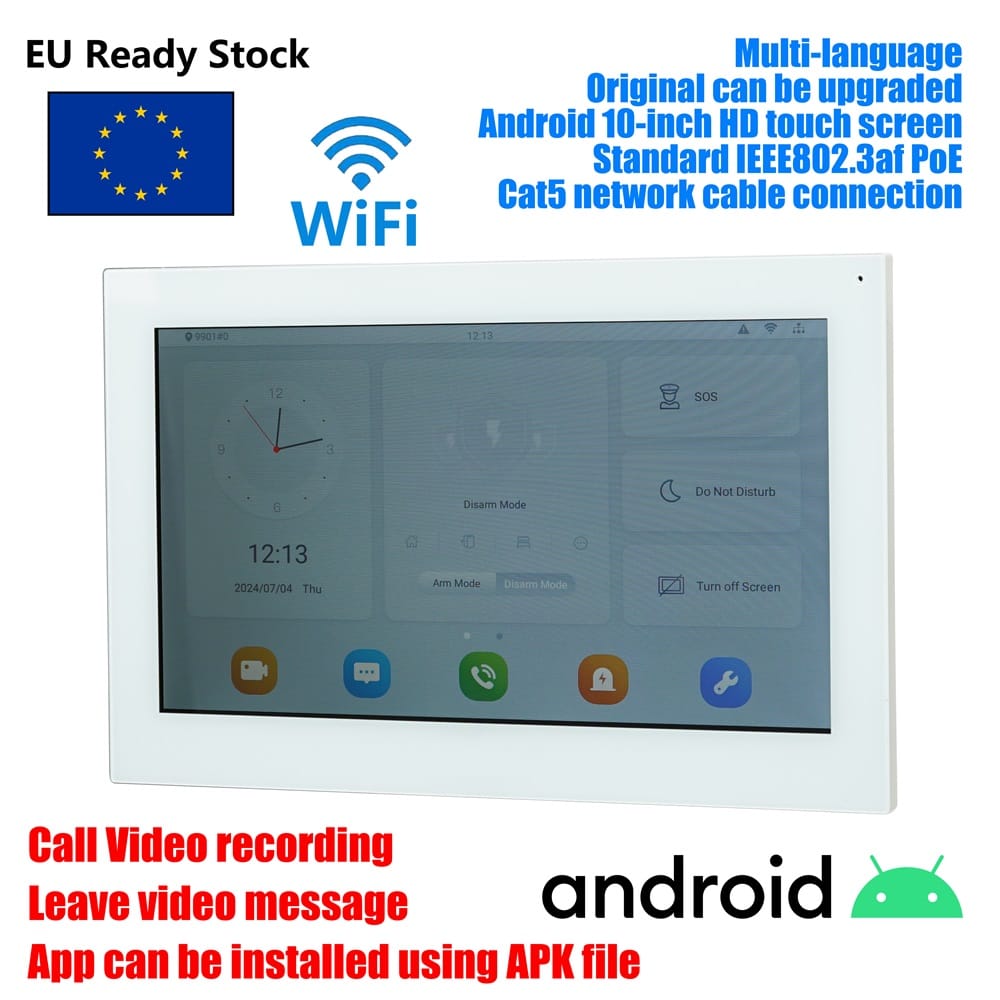

DH VTH5341G-W VTH5341GW-W PoE(802.3af) Android 10-inch digital indoor monitor, Video Intercom monitor, wired doorbell monitor
Important:
If you have any questions about EU Tax, Please chat with me
Note: This link only includes indoor display screen, not includes outdoor doorbell and PoE switch
If you need DoorBell , press this photo to buy:
Support Language:English,Russian,Ukraine,Italian,French,Germany,Dutch,Spanish,Portuguese,Polish,Turkey;
Scenes 1: multiple monitors
If you need a compatible PoE switch, press this photo to buy:
System | |||||||||
Main Processor | Embedded processor | ||||||||
Operating System | Android 8.1 | ||||||||
Network Protocol | IPv4, TCP, SIP, UDP, RTSP | ||||||||
Basic | |||||||||
Screen Type | Capacitive screen | ||||||||
Display Screen | 10 inch TFT LCD | ||||||||
Resolution | 1024×600 | ||||||||
Video Compression | H.264 | ||||||||
Audio Compression | PCM | ||||||||
Audio Input | 1 omnidirectional microphone | ||||||||
Audio Output | Built-in 1.5W speaker | ||||||||
Audio Mode | Two-way voice call | ||||||||
Audio Enhancement | Echo suppression/DNR | ||||||||
Audio Bit Rate | 16KHz, 16Bit | ||||||||
Function | |||||||||
Information Release | Text announcements released by the management center can be viewed | ||||||||
Communication Mode | Full digital | ||||||||
Elevator Control | You can control the elevator through the indoor monitor | ||||||||
Leave Videos or Text Messages | Yes (SD card is needed) | ||||||||
DND Mode | Do not disturb period can be set. | ||||||||
Extension Number | Villa: 4 | ||||||||
Apartment: 9 | |||||||||
Wi-Fi | Yes | ||||||||
Wireless Standard | IEEE802.11b/802.11g/802.11n | ||||||||
Wireless Frequency Range | 2.4GHz | ||||||||
Wireless Security-Encryption | 64/128bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK, WPS | ||||||||
Storage | Micro SD storage, the maximum space is 256GB | ||||||||
Port | |||||||||
RS-485 | 1 | ||||||||
Alarm Input | 8 | ||||||||
Alarm Output | 1 | ||||||||
Power Output | 1 12V/100mA | ||||||||
Door Bell | Yes, use alarm input port | ||||||||
Network Port | 1 10M/100M Ethernet | ||||||||
Alarm | |||||||||
SOS | Yes | ||||||||
Performance | |||||||||
Housing Material | PC+ABS | ||||||||
Regular | |||||||||
Color | Black | ||||||||
Power Supply | 12V DC 1A | ||||||||
Standard POE | |||||||||
Installation | Surface mount | ||||||||
Certifications | CE | ||||||||
FCC | |||||||||
Accessory | Surface mount bracket, alarm ribbon cable, RS-485 cable, and power-supply pins are provided | ||||||||
Product Dimensions | 260 mm×170 mm×15 mm (10.24"×6.69"×0.59") (ports are not counted) 260 mm×170 mm×25.4 mm (convex) (10.24"×6.69"×1") (ports are counted) | ||||||||
Operating Temperature | -10°C to +55°C (+14°F to +131°F) | ||||||||
Operating Humidity | 10%RH–95%RH (Non-condensing) | ||||||||
Operating Altitude | Less than 3,000 meters (9842.52 ft) | ||||||||
Power Consumption | ≤1.5W (standby), ≤7W (working) | ||||||||
Net Weight | 770g (1.70lb) | ||||||||
Gross Weight | 1.1kg (2.43lb) | ||||||||
,
