DH Multi-language Apartment IP Video Intercom VTO6531F IP Face Recognition Door Station,support RFID door phone,SIP Doorbell
Support Language:
English, Russian, Dutch, French, German, Italian, Polish, Portuguese, Spanish, Ukrainian, Arabic, Bulgarian, Czech, Danish, Finnish, Greek, Hungarian, Latvian, Lithuanian, Romanian, Hebrew, Japanese, Korean, Thai,Serbian, Slovak, Slovenian, Vietnamese, Turkish, Portuguese (Brazil), Spanish (Latin America);

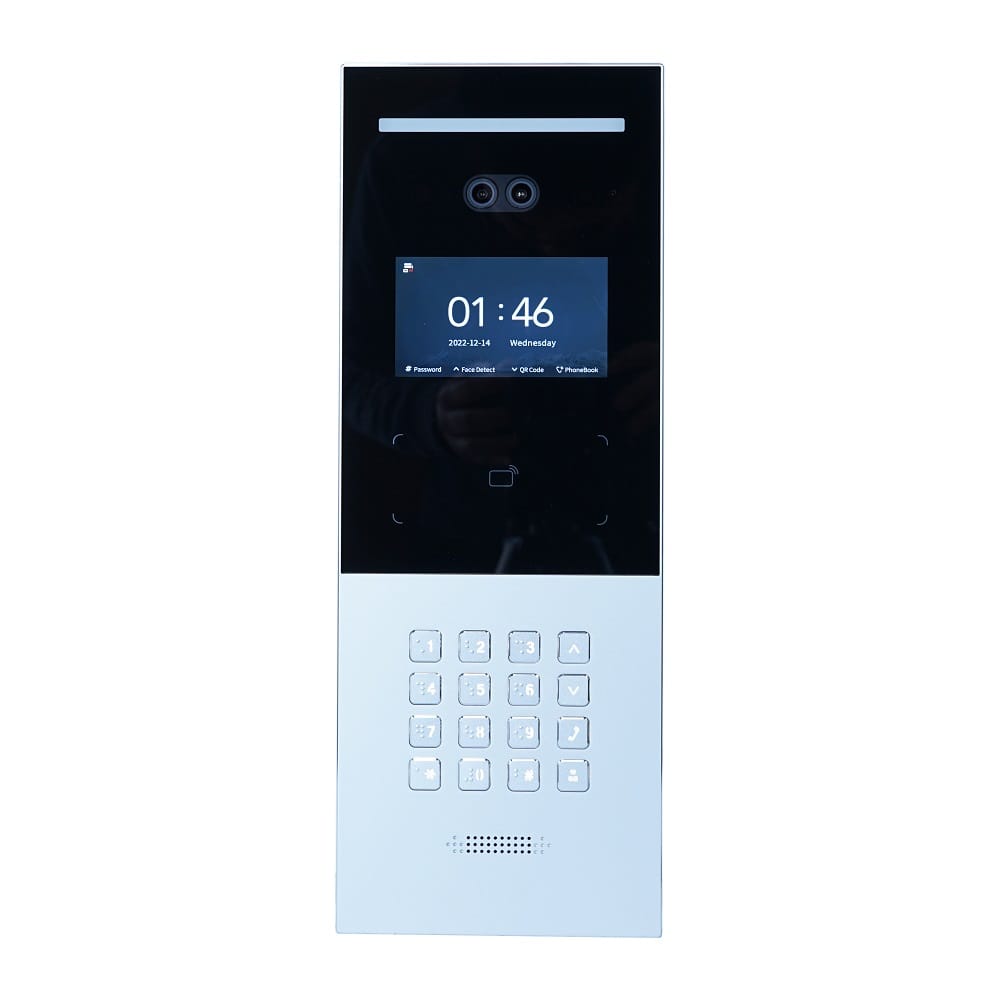

VTO6531F
Face Recognition Door Station
> 4.3 inch IPS display; screen resolution 800×480
> 2MP CMOS; true WDR
> Face-camera distance: 0.3 m–2 m; human height: 1.1 m–2.4 m (lens ground distance: 1.4 m)
> Aluminum anode surface; metal button; IP65, IK07
> Operating temperature: -30°C to +60°C
> Auto light illumination reduces light pollution
> Multiple unlock modes: Face unlock, Password unlock, IC card unlock, remote unlock and face unlock
> Support 20,000 users and 10,000 cards
> Support full duplex; management platform, and voice call through APP
> Support SIP server, and can manage 200 indoor monitors at most
> Support duress alarm, tamper alarm, and door sensor timeout alarm
System | ||||||||||
Main Processor | Embedded processor | |||||||||
Operating System | Embedded Linux operating system | |||||||||
Button Type | Mechanical | |||||||||
Network Protocol | SIP; P2P; IPv4; FTP; UPnP; DNS; DDNS; RTSP; RTP; TCP; UDP | |||||||||
ROM | 4GB | |||||||||
RAM | 1GB | |||||||||
Basic | ||||||||||
Display Screen | 4.3 inch IPS screen | |||||||||
Resolution | 800×480 | |||||||||
Camera | 1/2.7" 2MP CMOS high definition, low illumination, | |||||||||
Fngle of View | Horizontal: 113.79°; vertical: 61.5°; | |||||||||
diagonal: 134.45° | ||||||||||
Focal Length | 2.8mm | |||||||||
Aperture | F2.0 | |||||||||
WDR | 120dB | |||||||||
Noise Reduction | 3D noise reduction | |||||||||
Video Compression | H.264 | |||||||||
Video Resolution | Main Stream: 720p, sub stream: 1080P | |||||||||
Frame Rate | Main Stream (720P@25fps), sub stream (1080P@25fps) | |||||||||
Main Stream (720P@30fps), sub stream (1080P@30fps) | ||||||||||
Video Bit Rate | 256Kbps–2048Kbps | |||||||||
Light Compensation | Auto white light | |||||||||
Audio Compression | G.711u | |||||||||
Audio Input | 1 | |||||||||
Audio Output | Built-in speaker | |||||||||
Audio Mode | Full duplex communication | |||||||||
Audio Enhancement | Echo suppression and cancellation/digital noise reduction | |||||||||
Audio Bit Rate | 16KHz, 16Bit | |||||||||
Function | ||||||||||
Communication Mode | Full digital | |||||||||
Unlock Mode | Remote/password/face/fingerprint/card | |||||||||
Card Type | IC card | |||||||||
Motion Detection | Video motion detection | |||||||||
Auto Snapshot | Yes | |||||||||
Leave Videos or Text Messages | Yes | |||||||||
Web Configuration | Yes | |||||||||
Performance | ||||||||||
Card Reading Distance | 1cm–5cm | |||||||||
Issue Card Locally | Yes | |||||||||
Casing Material | Aluminum alloy | |||||||||
Capacity | ||||||||||
Card | 10, 000 | |||||||||
Port | ||||||||||
RS-485 | 1 | |||||||||
Wiegand | 1 input port, 1 output port | |||||||||
Electric Lock | 1 | |||||||||
Alarm Input | 2 | |||||||||
Alarm Output | 2 | |||||||||
Power Output | 1 12V/100mA | |||||||||
Exit Button | 1 | |||||||||
Door Status Detection | 1 | |||||||||
Lock Control | 1, normally open by default | |||||||||
Network | 1 RJ-45 10Mbps/100Mbps self-adaptive | |||||||||
Alarm | ||||||||||
Tamper | Yes | |||||||||
General | ||||||||||
Password Unlock Mode | User password/public password/duress password | |||||||||
Color | Silver | |||||||||
Power Supply Mode | DC 12V2A | |||||||||
Power Adapter | Optional | |||||||||
Installation | Surface mount and Flush mount | |||||||||
Certification | CE/FCC | |||||||||
Accessory | Optional | |||||||||
Product Dimensions | 389 mm×145 mm×41.9 mm (15.31"×5.71"×1.65") | |||||||||
Protection Grade | IP65 (silicone sealant is needed, see the quick start guide) | |||||||||
Operating Temperature | -30°C to +60°C (-22°F to +140°F ) | |||||||||
Operating Humidity | 10%RH–90%RH (non-condensing) | |||||||||
Operating Altitude | 86kPa–106kPa | |||||||||
Power Consumption | ≤5W (standby), ≤18W (working) | |||||||||
Net Weight | 1.4 kg (3.09 lb) | |||||||||
Gross Weight | 1.68 kg (3.70 lb) | |||||||||
,
