DH Multi-language Apartment IP Video Intercom VTO6521F IP Outdoor Station,support RFID door phone,SIP Doorbell
Support Language:
English, Russian, Dutch, French, German, Italian, Polish, Portuguese, Spanish, Ukrainian, Arabic, Bulgarian, Czech, Danish, Finnish, Greek, Hungarian, Latvian, Lithuanian, Romanian, Hebrew, Japanese, Korean, Thai,Serbian, Slovak, Slovenian, Vietnamese, Turkish, Portuguese (Brazil), Spanish (Latin America);

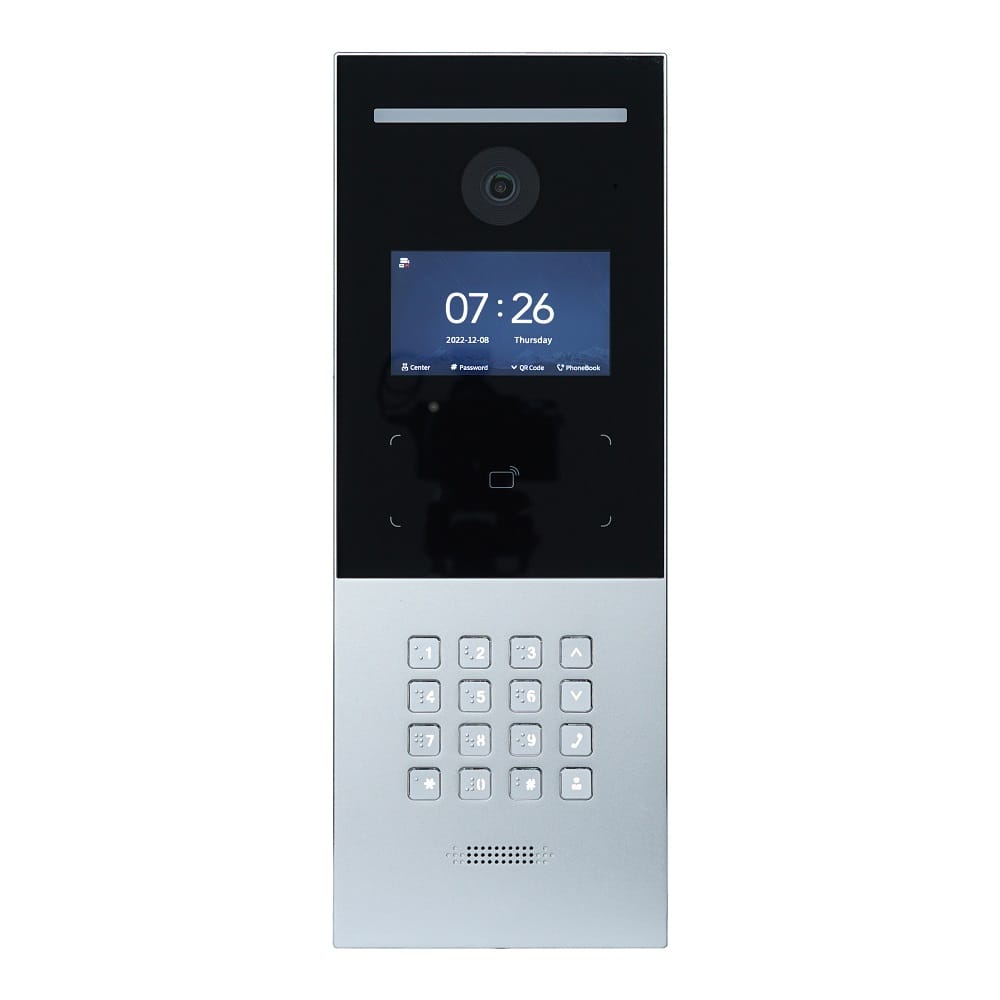

VTO6521F
Apartment Door Station
> 4.3 inch IPS display; screen resolution 800×480
> 2MP CMOS; true WDR
> Aluminum anode surface; metal button; IP65, IK07
> Operating temperature: -30°C to +60°C
> Auto light illumination reduces light pollution
> Multiple unlock modes: Password unlock, IC card unlock, and remote unlock
> Support 20,000 users and 10,000 cards
> Support full duplex; management platform, and voice call through APP
> Support SIP server, and can manage 200 indoor monitors at most
> Support duress alarm, tamper alarm, and door sensor timeout alarm
System | ||||||||
Main Processor | Embedded processor | |||||||
Operating System | Embedded Linux operating system | |||||||
Button Type | Mechanical | |||||||
Network Protocol | SIP; P2P; IPv4; FTP; UPnP; DNS; DDNS; RTSP; RTP; TCP; UDP | |||||||
ROM | 4GB | |||||||
RAM | 1GB | |||||||
Basic | ||||||||
Display Screen | 4.3 inch IPS screen | |||||||
Resolution | 800×480 | |||||||
Camera | 1/2.7" 2MP CMOS high definition, low illumination | |||||||
Fngle of View | Horizontal: 113.79°; vertical: 61.5°; | |||||||
diagonal: 134.45° | ||||||||
Focal Length | 2.8mm | |||||||
Aperture | F2.0 | |||||||
WDR | 120dB | |||||||
Noise Reduction | 3D noise reduction | |||||||
Video Compression | H.264 | |||||||
Video Resolution | Main Stream: 720p, sub stream: 1080P | |||||||
Frame Rate | Main Stream (720P@25fps), sub stream (1080P@25fps) | |||||||
Main Stream (720P@30fps), sub stream (1080P@30fps) | ||||||||
Video Bit Rate | 256Kbps–2048Kbps | |||||||
Light Compensation | Auto white light | |||||||
Audio Compression | G.711u | |||||||
Audio Input | 1 | |||||||
Audio Output | Built-in speaker | |||||||
Audio Mode | Full duplex communication | |||||||
Audio Enhancement | Echo suppression and cancellation/digital noise reduction | |||||||
Audio Bit Rate | 16KHz, 16Bit | |||||||
Function | ||||||||
Communication Mode | Full digital | |||||||
Unlock Mode | Card/remote/password unlock | |||||||
Card Type | IC card | |||||||
Motion Detection | Video motion detection | |||||||
Auto Snapshot | Yes | |||||||
Leave Videos or Text Messages | Yes | |||||||
Web Configuration | Yes | |||||||
Performance | ||||||||
Card Reading Distance | 1cm–5cm | |||||||
Issue Card Locally | Yes | |||||||
Casing Material | Aluminum alloy | |||||||
Capacity | ||||||||
Card | 10, 000 | |||||||
Port | ||||||||
RS-485 | 1 | |||||||
Wiegand | 1 input port, 1 output port | |||||||
Electric Lock | 1 | |||||||
Alarm Input | 2 | |||||||
Alarm Output | 2 | |||||||
Power Output | 1 12V/100mA | |||||||
Exit Button | 1 | |||||||
Door Status Detection | 1 | |||||||
Lock Control | 1, normally open by default | |||||||
Network | 1 RJ-45 10Mbps/100Mbps self-adaptive | |||||||
Alarm | ||||||||
Tamper | Yes | |||||||
General | ||||||||
Password Unlock Mode | User password/public password/duress password | |||||||
Color | Silver | |||||||
Power Supply Mode | DC 12V2A | |||||||
Power Adapter | Optional | |||||||
Installation | Surface mount and Flush mount | |||||||
Certification | CE/FCC | |||||||
Accessory | Optional | |||||||
Product Dimensions | 389 mm×145 mm×41.9 mm (15.31"×5.71"×1.65") | |||||||
Protection Grade | IP65 (silicone sealant is needed, see the quick start guide) | |||||||
Operating Temperature | -30°C to +60°C (-22°F to +140°F ) | |||||||
Operating Humidity | 10%RH–90%RH (non-condensing) | |||||||
Operating Altitude | 86kPa–106kPa | |||||||
Power Consumption | ≤5W (standby), ≤18W (working) | |||||||
Net Weight | 1.4 kg (3.09 lb) | |||||||
Gross Weight | 1.68 kg (3.70 lb) | |||||||
,
