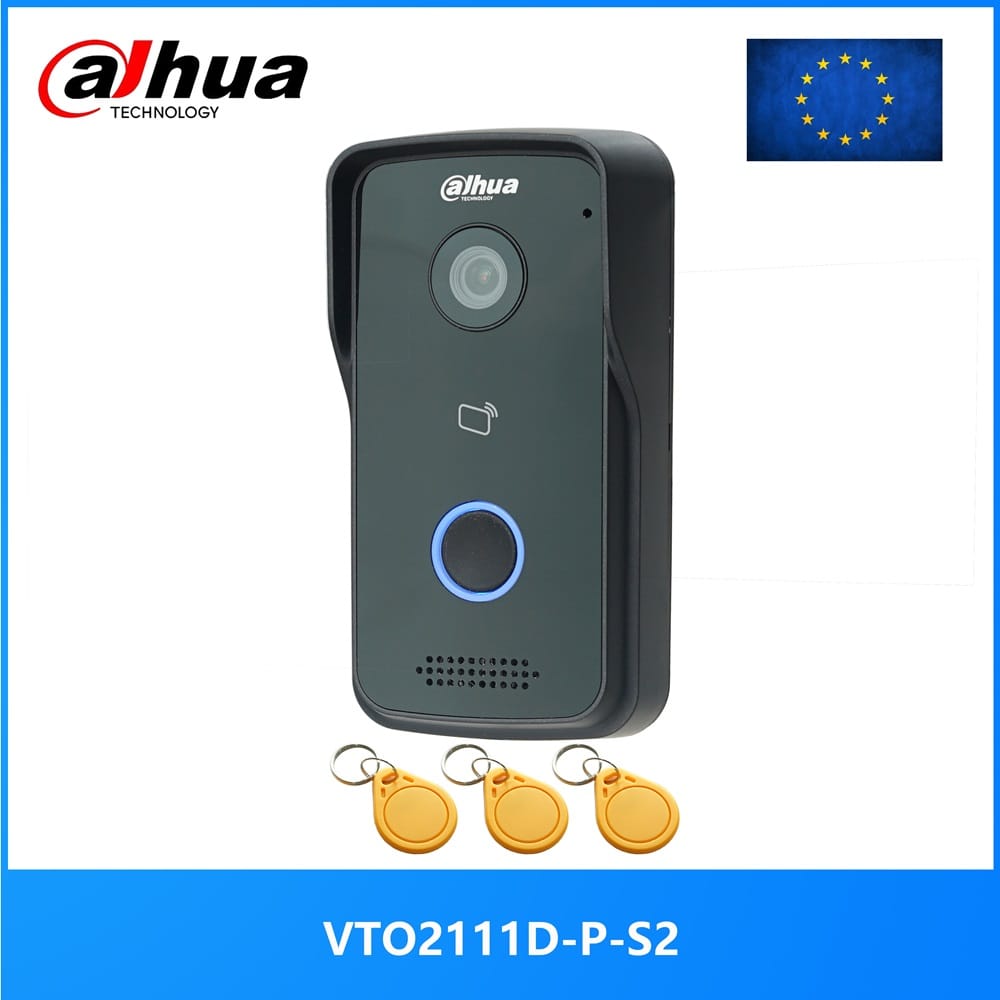

Dahua Multi-language VTO2111D-P-S2 802.3af PoE IP Villa Doorbell,Video intercom,IP Door Phone,P2P Cloud,Door Station
Important:
If you have any questions about EU Tax, Please chat with me
Note: This link only includes outdoor doorbell, not includes indoor display screen and PoE switch
If you need a indoor monitor or PoE switch, press this photo to buy:
Phone app: DMSS
The Doorbell can work with the Indoor monitor.
One button doorbell supports Max up call to 1 Indoor main monitor and 9 Indoor extended monitors.
The doorbell also can be used alone, can call to the phone app directly.
Support Language:
English, Russian, Dutch, French, German, Italian, Polish, Portuguese, Spanish, Ukrainian, Arabic, Bulgarian, Czech, Danish, Finnish, Greek, Hungarian, Latvian, Lithuanian, Romanian, Serbian, Slovak, Slovenian, Vietnamese, Turkish, Portuguese (Brazil), Spanish (Latin America);
Scenes 1 :Work with 802.3af PoE monitor
If you need a compatible PoE switch, press this photo to buy:
Use Access Control Extension Module(DEE1010B) to control two locks
System | ||||||||
Main Processor | Embedded processor | |||||||
Operating System | Embedded LINUX operating system | |||||||
Button Type | Mechanical | |||||||
Interoperability | ONVIF | |||||||
Internet Protocol | SIP; P2P; IPv4; DNS; RTSP; RTP; TCP; UDP | |||||||
Baisc | ||||||||
Camera | 1/4" 1MP CMOS high definition, low illumination/WDR, color/IR | |||||||
Angle of View | Horizontal: 107°; vertical: 61°; diagonal: 122° | |||||||
WDR | Yes | |||||||
Noise Reduction | 3D noise reduction | |||||||
Video Compression | H.264 | |||||||
Video Resolution | Main stream: WVGA, 720P, D1 | |||||||
Sub stream: CIF, WVGA, QVGA, 1080P, D1 | ||||||||
Frame Rate | PAL: 25 fps NTSC: 30 fps | |||||||
Video Bit Rate | 256K to 4M | |||||||
Light Compensation | Auto IR | |||||||
D/N | ICR auto switch | |||||||
Audio Compression | G.711a; PCM; AAC | |||||||
Audio Input | 1 | |||||||
Audio Output | Built-in speaker | |||||||
Audio Mode | Two-way voice call | |||||||
Audio Enhancement | Echo suppression and cancellation/digital noise reduction | |||||||
Audio Bit Rate | 16KHz, 16Bit | |||||||
Function | ||||||||
Communication | Full digital | |||||||
Unlock Mode | Card/App remote/indoor monitor unlock | |||||||
Card Type | IC card | |||||||
Motion Detection | Video motion detection | |||||||
Auto Snapshot | Auto snapshot can only be enabled on indoor monitors | |||||||
Leave Photos and Messages | Yes (SD card is needed) | |||||||
Web Configuration | Yes | |||||||
Performance | ||||||||
Card Reading Distance | 3cm–5cm | |||||||
Casing | PC+Acrylic | |||||||
Capacity | ||||||||
Card | 10,000 | |||||||
Port | ||||||||
RS-485 | 1 | |||||||
Electric Lock | 1 | |||||||
Exit Button | 1 | |||||||
Door Status Detection | 1 | |||||||
Lock Control | 1, normally closed by default | |||||||
Network | 1 10Mbps/100Mbps network port (8-core white ribbon cable) | |||||||
Alarm | ||||||||
Tamper | Yes | |||||||
General | ||||||||
Color | Black | |||||||
Power Supply Mode | 12V DC 1A | |||||||
Standard PoE | ||||||||
Installation | Surface mount | |||||||
Certifications | CE | |||||||
FCC | ||||||||
UL | ||||||||
Accessory | Brackets and alarm ribbon cable | |||||||
Dimensions | 135mm×70.4mm×34.4mm (5.31"×2.77"×1.35") | |||||||
Protection Grade | IP65 (silicone sealant is needed, see the quick start guide) | |||||||
Operating Temperature | -30°C to +60°C (-20°F to +60°F ) | |||||||
Operating Humidity | 10%RH–90%RH (non-condensing) | |||||||
Operating Altitude | Beneath 3000 m (9842.52 ft) | |||||||
Power Consumption | Standby≤1W, working≤5W | |||||||
Gross Weight | 326 g (0.72 lb) | |||||||
Support for adding outdoor stations to Synology NAS recording and playback
,
