Dahua Multi-Language IP Video Intercom KIT,VTO3221E-P &VTH5341GW-W & PoE switch,support SIP, Password code unlock

Ghost

— 3 min read

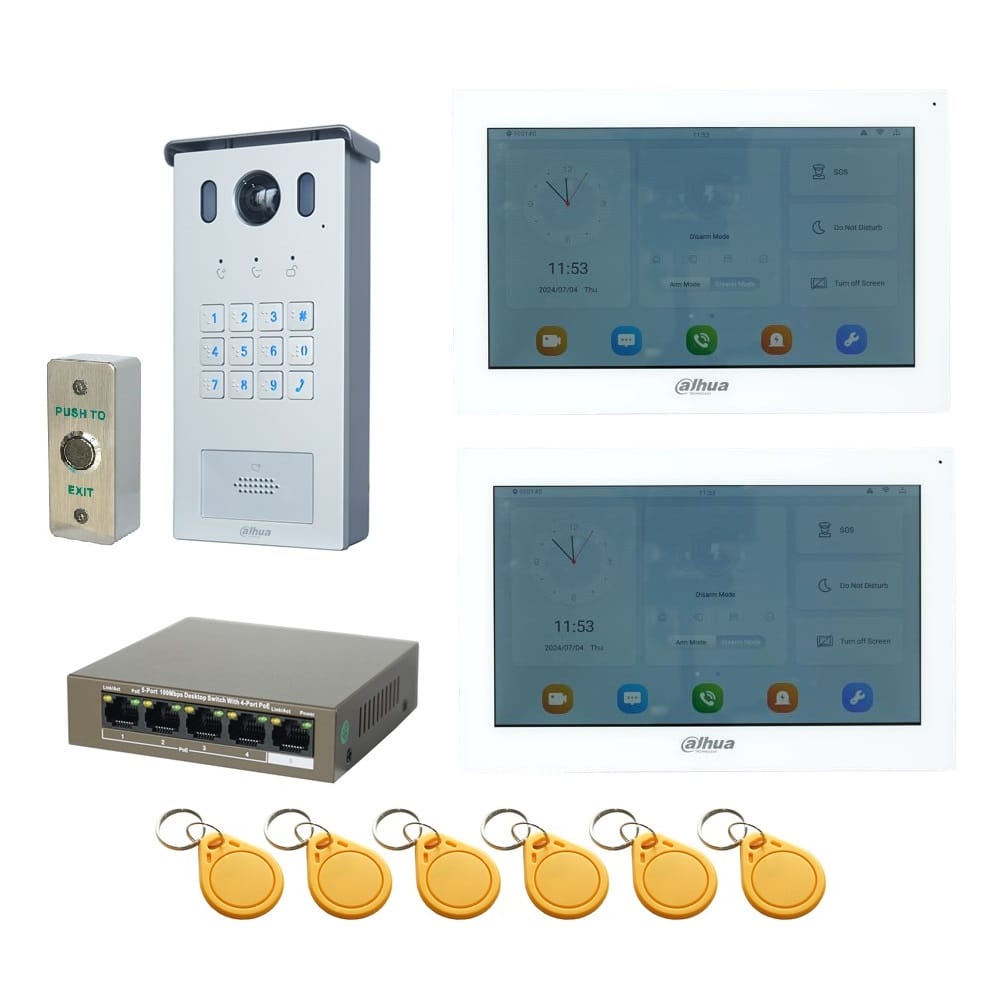

Dahua Multi-Language IP Video Intercom KIT,VTO3221E-P &VTH5341GW-W & PoE switch,support SIP, Password code unlock

list:VTO3221E-P   1pcs , support Hebrew10 inch screen VTH5341GW-W   2pcs , not support Hebrew4 port poe switch 1pcsEXIT button with surface mount box   1pcs

Door Station model:VTO3221E-P



Technical Specification

Model

VTO3221E-P

System

Main Processor

Embedded Micro Processor

Operation System

Embedded LINUX OS

Video

Video Compression

H.264

Image Sensor

1/2.9" 2MP CMOS

Auto Gain Control

White Light

Lens

2mm

Angle of View

H:140° V:82°

Day/Night

Color Image

Audio

Audio Compression

G.711

Audio Input

Omnidirectional Mic

Audio Output

Built-in Speaker

Bidirectional Talk

Support Dual-way Bidirectional talk

Display

Screen

2.3'' OLED

Operation Mode

Keypad

Mechanical Button with Braille

Reader

Mifare Card(13.56MHz)

Interface

Alarm In/Out

1/1

Door Control

1 Relay Out

1 RS485

1 Feedback

1 Exit Button

Wiegand In

1

Network

Ethernet

10M/100Mbps

Network Protocol

TCP/IP

General

Ingress Protection

IK08, IP65 (Apply silica gel to gaps between the device and the wall.

Liquid sodium silicate is recommended. For details, see the quick start guide.)

Tamper Switch

1

Installation

Surface & Flush

Material

Aluminum

Power

DC 12V, 2A, PoE(802.3af)

Power Consumption

Standby ≤2W, Work ≤7W

Working Temperature

﹣40°C~+60°C

Relative Humidity

20%~95%RH

Dimensions

200mm×98mm×32mm

Weight

1.5Kg

Indoor Monitor model : VTH5341G

System

Main Processor

Embedded processor

Operating System

Android 8.1

Network Protocol

IPv4, TCP, SIP, UDP, RTSP

Basic

Screen Type

Capacitive screen

Display Screen

10 inch TFT LCD

Resolution

1024×600

Video Compression

H.264

Audio Compression

PCM

Audio Input

1 omnidirectional microphone

Audio Output

Built-in 1.5W speaker

Audio Mode

Two-way voice call

Audio Enhancement

Echo suppression/DNR

Audio Bit Rate

16KHz, 16Bit

Function

Information Release

Text announcements released by the management center can be viewed

Communication Mode

Full digital

Elevator Control

You can control the elevator through the indoor monitor

Leave Videos or Text Messages

Yes (SD card is needed)

DND Mode

Do not disturb period can be set.

Extension Number

Villa: 4

Apartment: 9

Wi-Fi

Yes (Video/voice calls can be made only when the indoor monitor is connected to wired networks.)

Wireless Standard

IEEE802.11b/802.11g/802.11n

Wireless Frequency Range

2.4GHz

Wireless Security-Encryption

64/128bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK, WPS

Storage

Micro SD storage, the maximum space is 256GB

Port

RS-485

1

Alarm Input

8

Alarm Output

1

Power Output

1 12V/100mA

Door Bell

Yes, use alarm input port

Network Port

1 10M/100M Ethernet

Alarm

SOS

Yes

Performance

Housing Material

PC+ABS

Regular

Color

White

Power Supply

12V DC 1A
Standard POE

Installation

Surface mount

Certifications

CE
FCC

Accessory

Surface mount bracket, alarm ribbon cable, RS-485 cable, and power-supply pins are provided

Product Dimensions

260 mm×170 mm×15 mm (10.24"×6.69"×0.59") (ports are not counted) 260 mm×170 mm×25.4 mm (convex) (10.24"×6.69"×1") (ports are counted)

Operating Temperature

-10°C to +55°C (+14°F to +131°F)

Operating Humidity

10%RH–95%RH (Non-condensing)

Operating Altitude

Less than 3,000 meters (9842.52 ft)

Power Consumption

≤1.5W (standby), ≤7W (working)

Net Weight

770g (1.70lb)

Gross Weight

1.1kg (2.43lb)


,
