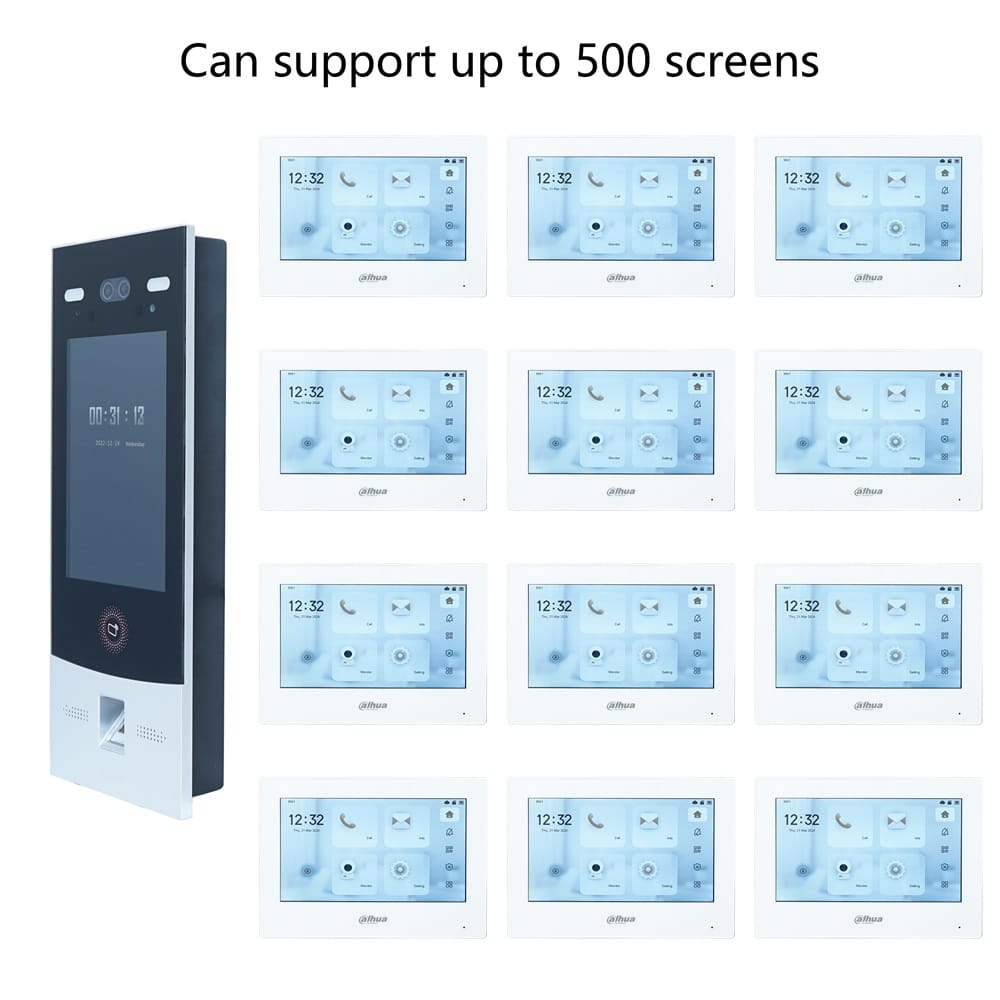

Dahua Multi-language Apartment IP Video Intercom KIT, VTO7541G &VTH2621GW-P,Support RFID Face Code Fingerprint unlock,door phone
If you want to control the second lock, you need to order a DEE1010B
Support Language:
English, Russian, Dutch, French, German, Italian, Polish, Portuguese, Spanish, Ukrainian, Arabic, Bulgarian, Czech, Danish, Finnish, Greek, Hungarian, Latvian, Lithuanian, Romanian, Hebrew, Japanese, Korean, Thai,Serbian, Slovak, Slovenian, Vietnamese, Turkish, Portuguese (Brazil), Spanish (Latin America);
Door Station model: VTO7541G
Digital Face Recognition Outdoor Station
> Anodized aluminium alloy middle frame
> 8 inch capacitive touch screen and high definition IPS screen; resolution: 800 (H)×1280 (V)
> Face, fingerprint, password, and card unlock
> Face verification accuracy>99%; face comparison time ≤0.2s per person; false recognition rate<0.1%
> Face profiles can be recognized, the profile angle range is 0°–90°
> Support liveness detection
> Full duplex communication
> Outdoor stations can be managed through the platform; voice communication between mobile app and platform
> 2 MP low illuminance wide dynamic dual camera; white light fill light and IR fill light, fill light brightness can be adjusted
> Support duress alarm, tamper alarm, and fire alarm
> IK07; IP66 (Apply silica gel to gaps between the device and the wall. Liquid sodium silicate is recommended. For details, see the quick start guide.)
> Surface mount and flush mount
System | ||||||||
Main Processor | Embedded processor | |||||||
Internet Protocol | IPv4, DNS, RTSP, RTP, TCP, UDP, SIP | |||||||
Keyboard Type | Touch keyboard | |||||||
Basic | ||||||||
Appearance | G serials | |||||||
Display | High definition IPS screen | |||||||
Screen Type | Capacitive screen | |||||||
Resolution | 800 (H)×1280 (V) | |||||||
Camera | 1/2.8” 2MP CMOS | |||||||
Angle of View | H:88°, V:47°, D:105° | |||||||
WDR | 120dB | |||||||
Light Compensation | Auto white light fill light | |||||||
Auto IR light fill light | ||||||||
Status Indicator | 1, blue-operation status | |||||||
Voice prompt | Yes | |||||||
Housing Material | AL+PC+ABS | |||||||
Function | ||||||||
Unlock Mode | Remote/password/face/fingerprint/card | |||||||
Online Update | Yes | |||||||
Full Duplex Communication | Yes | |||||||
Snapshot When Unlocking Doors | Yes | |||||||
Information Release | Words, pictures, and videos can be played on the outdoor station | |||||||
Leave Photos and Messages | Yes | |||||||
Web Configuration | Yes | |||||||
Motion Detection | Video motion detection | |||||||
Issue Card Locally | Yes | |||||||
Auto-Registration | Yes | |||||||
Performance | ||||||||
Face Recognition Range | Face-camera distance: 0.3 m–2.0 m | |||||||
Human height: 1.1 m–2.4 m | ||||||||
Face Recognition Configuration | Anti-fake switch | |||||||
Recognition threshold | ||||||||
Facial profile angle | ||||||||
Face Verification Accuracy | >99% | |||||||
Face Comparison Time | ≤0.2s | |||||||
Capacity | ||||||||
Face Capacity | 20, 000 | |||||||
Card Capacity | 10, 000 | |||||||
Fingerprint Capacity | 10, 000 | |||||||
Port | ||||||||
RS-485 | 1 | |||||||
Wiegand | 1 (input or output) | |||||||
Ethernet | 1 10M/100M/1000M Ethernet port | |||||||
Alarm Input | 2 (Switch quantity) | |||||||
Alarm Output | 2 (Dry contact) | |||||||
Alarm Linkage | Yes | |||||||
Power Output | 1 DC 12V/100ma | |||||||
Exit Button | 1 | |||||||
Door Status Detection | 1 | |||||||
Lock Control | 1, normally on or off by default | |||||||
Storage | Micro SD card(up to 64GB reserved for software ) | |||||||
Alarm | ||||||||
Tamper Alarm | Yes | |||||||
Duress Alarm | Yes | |||||||
Door Sensor Timeout | Yes | |||||||
Regular | ||||||||
Ingress Protection | IP66 (Apply silica gel to gaps between the device and the wall. | |||||||
Power Supply | Optional | |||||||
Power Supply Mode | DC 12V/2A | |||||||
Power Consumption | ≤24.0W | |||||||
Product Dimensions | 389mm×145mm×43mm (15.31"×5.71"×1.69") | |||||||
Packaging Dimensions | 413mm×182mm×104mm (16.26"×7.17"×4.09") | |||||||
Operating Temperature | -20°C to +60°C (-4°F to + 140°F) | |||||||
Operating Humidity | 10%RH–90%RH | |||||||
Operating Altitude | 86kPa–106kPa | |||||||
Gross Weight | 1.91kg (4.21 lb) | |||||||
Accessory | Mount plate | |||||||
Installation Method | Surface mount and flush mount | |||||||
Operating Environment | Outdoor | |||||||
Indoor Monitor model : VTH2621G-P
System | |||||||||
Main Processor | Embedded processor | ||||||||
Operating System | Embedded Linux operating system | ||||||||
Network Protocol | IPv4; FTP; UPnP; SNMP; DNS; DDNS; RTSP; RTP; TCP; UDP; SIP | ||||||||
Basic | |||||||||
Screen Type | Capacitive touchscreen | ||||||||
Display | 7" TFT | ||||||||
Screen Resolution | 1024 × 600 | ||||||||
Audio Compression | G.711a; G.711u; PCM | ||||||||
Audio Input | 1 | ||||||||
Audio Output | Built-in speaker | ||||||||
Audio Mode | 2-channel | ||||||||
Audio Enhancement | Echo suppression | ||||||||
Audio Bit Rate | 16 kHz; 16 bit | ||||||||
Function | |||||||||
Communication Mode | Full digital | ||||||||
Information Release | Receive and view text information released by the management center | ||||||||
DND Mode | Do not disturb period can be set; Do not disturb mode | ||||||||
Number of Extensions | Villa: 9 | ||||||||
Apartment: 4 | |||||||||
Performance | |||||||||
Casing | PC + ABS | ||||||||
Port | |||||||||
Alarm Input | 6 | ||||||||
Alarm Output | 1 | ||||||||
Power Output | 1 (12 V/200 mA) | ||||||||
Door Bell | Yes (use any alarm input port) | ||||||||
Network | One 10/100 Mbps Ethernet | ||||||||
Alarm | |||||||||
SOS | Yes | ||||||||
General | |||||||||
Color | White | ||||||||
Power Supply | 12 VDC 1A; | ||||||||
Standard PoE (36–57 V, 0.35 A) | |||||||||
Installation | Surface Mount | ||||||||
Certifications | CE; FCC | ||||||||
Accessory | Bracket and alarm ribbon cable (included) | ||||||||
Dimensions | 189.6 mm × 134.6 mm × 26.0 mm (7.50" × 5.30" × 1.00") | ||||||||
Operating Temperature | –10 °C to +55 °C (+14 °F to 131 °F) | ||||||||
Operating Humidity | 10%–95% RH (non-condensing) | ||||||||
Operating Altitude | Beneath 3,000 m (9,842.52 ft) | ||||||||
Power Consumption | Standby ≤ 2 W; working ≤ 6 W | ||||||||
Net Weight | 0.34 kg (0.74 lb) | ||||||||
Gross Weight | 0.58 kg (1.27 lb) | ||||||||
,
